Installation Procedure

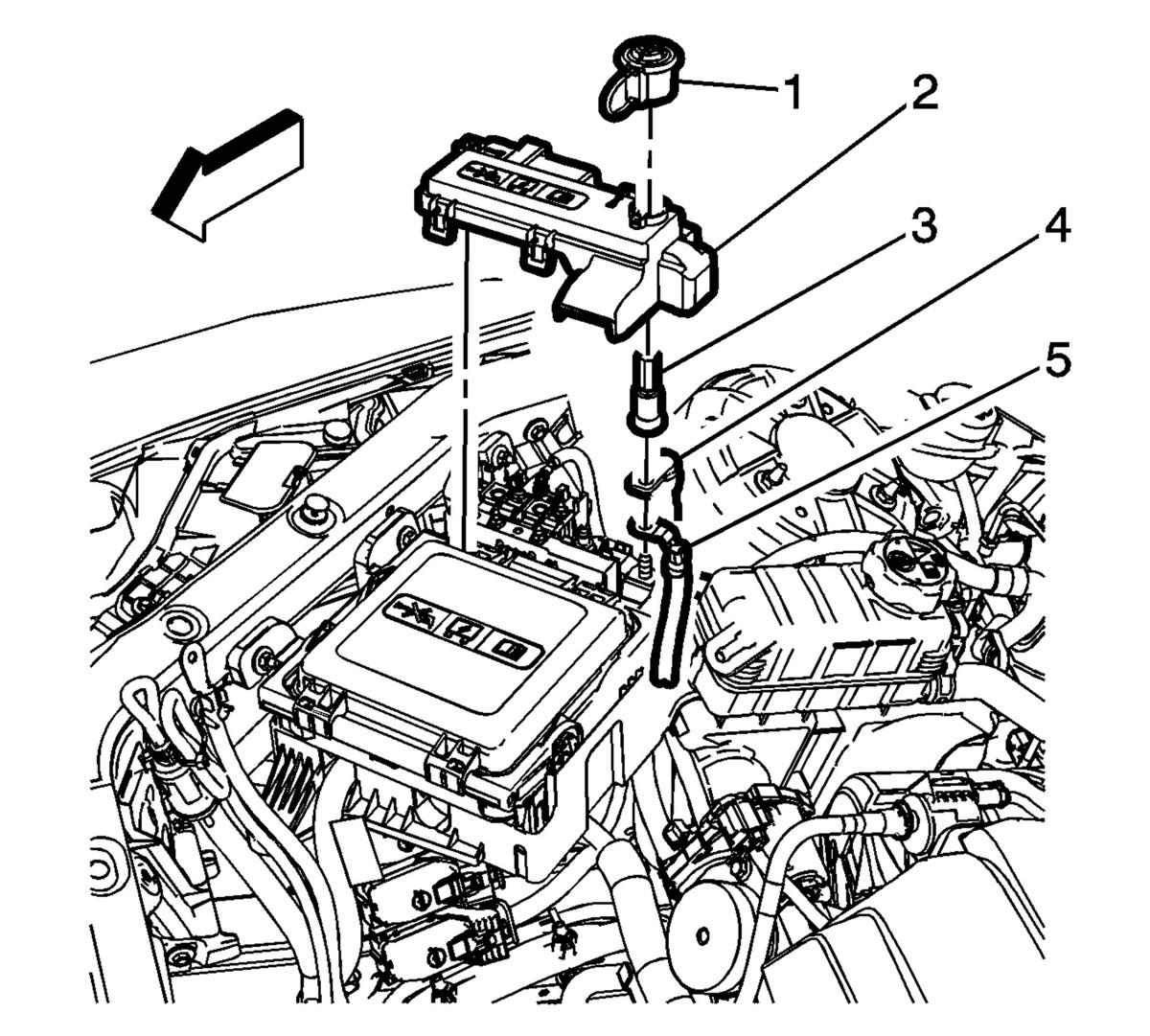

  1. GM2829735Courtesy of GENERAL MOTORS COMPANY

    Starter Solenoid Cable (5) - Install

  2. Battery Positive Cable (4) - Install
  3. Battery Positive Barrel Fastener (3) - Install and tighten to 12 N.m (106 lb in)
  4. Pre-Fuse Block Cover (2) - Install
  5. Battery Jumper Post Cover (1) - Install

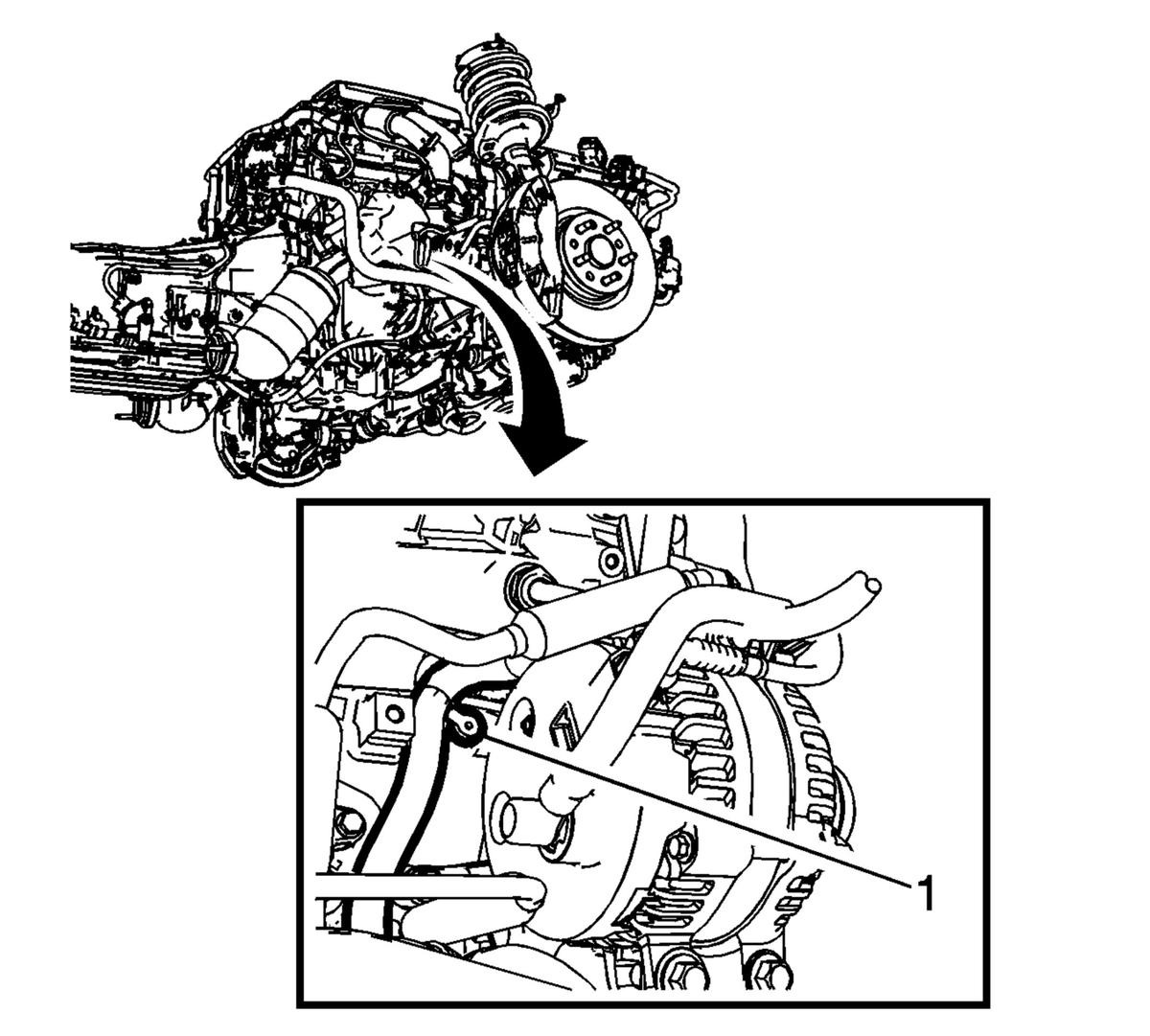

  6. GM3556456Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Engage

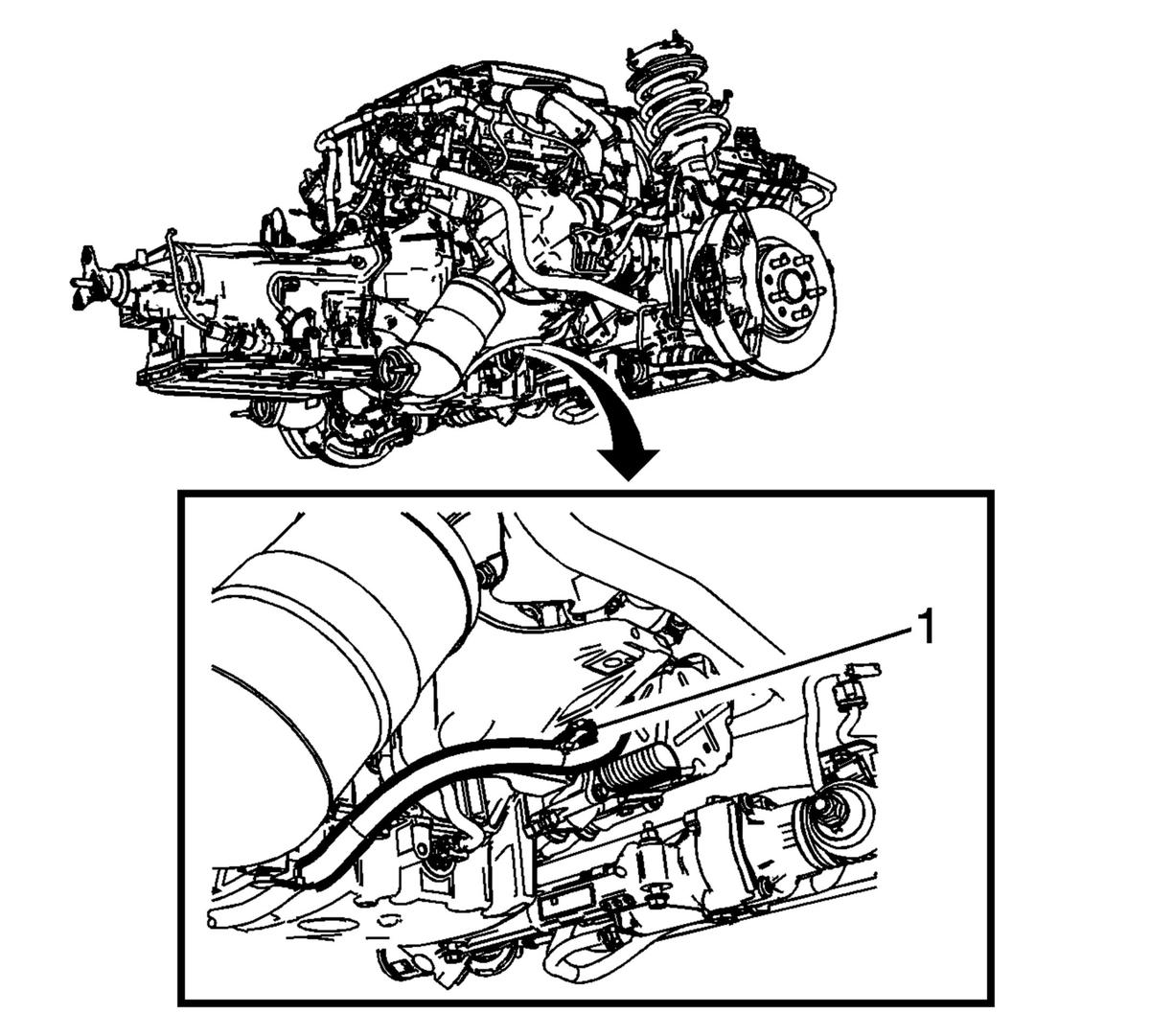

  7. GM3556460Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Engage

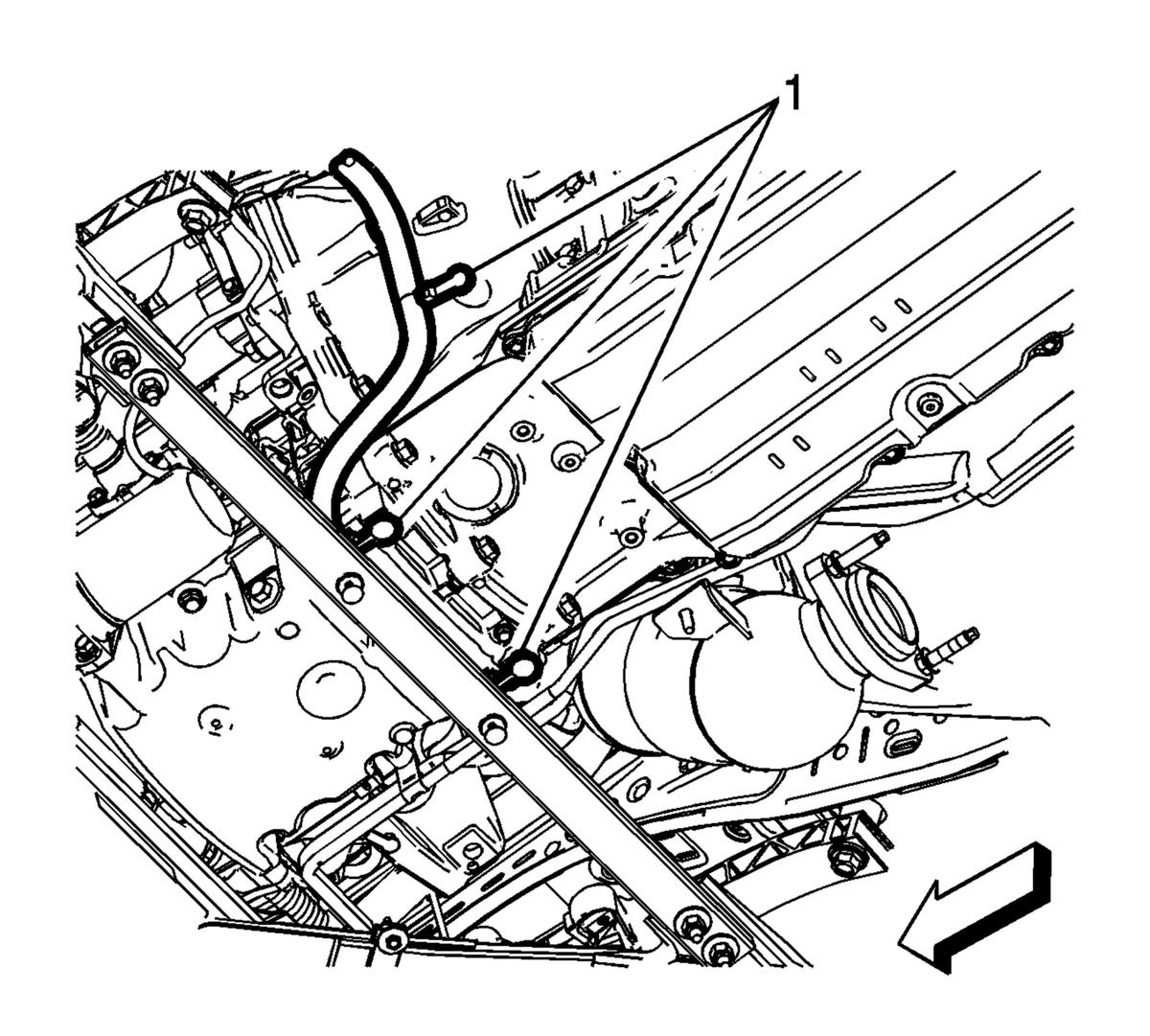

  8. GM3556461Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Engage [3x]

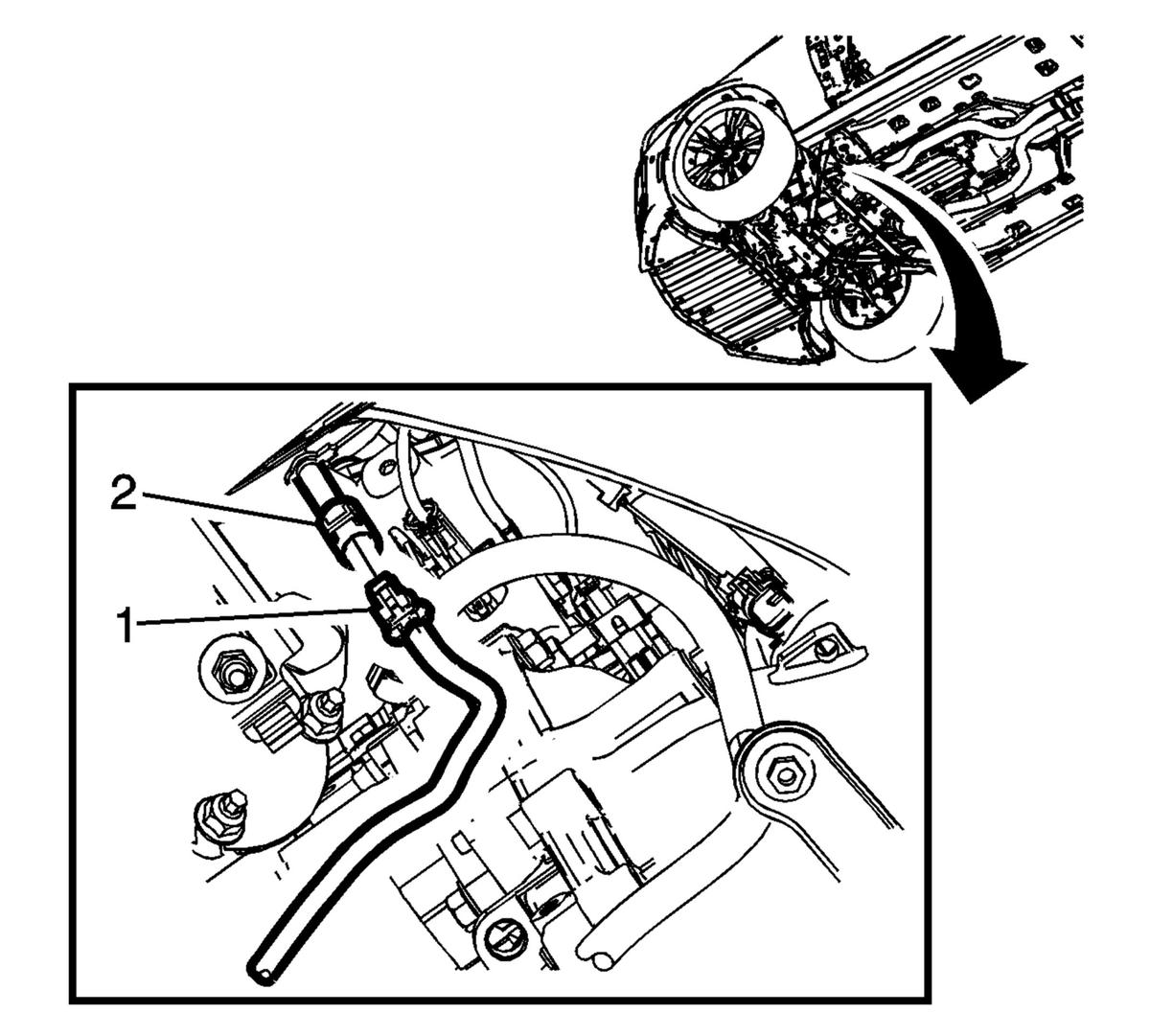

  9. GM3556462Courtesy of GENERAL MOTORS COMPANY

    Connect the starter solenoid cable connector (1) to the engine harness connector (2).

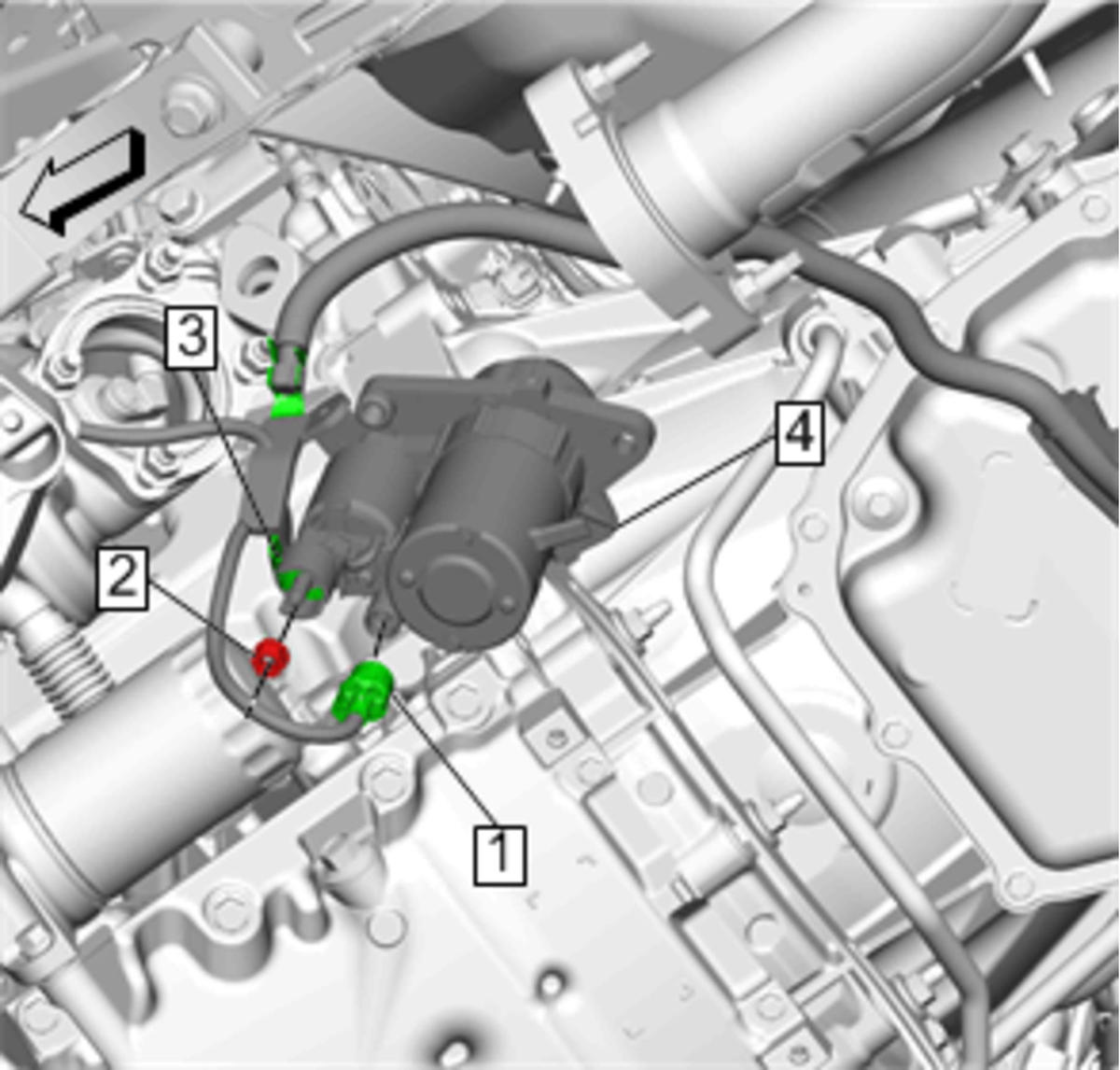

  10. GM4277291Courtesy of GENERAL MOTORS COMPANY

    Starter (4) - Install - Starter Replacement (LF3)

  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)
