Battery Distribution Engine Compartment Fuse Block Replacement

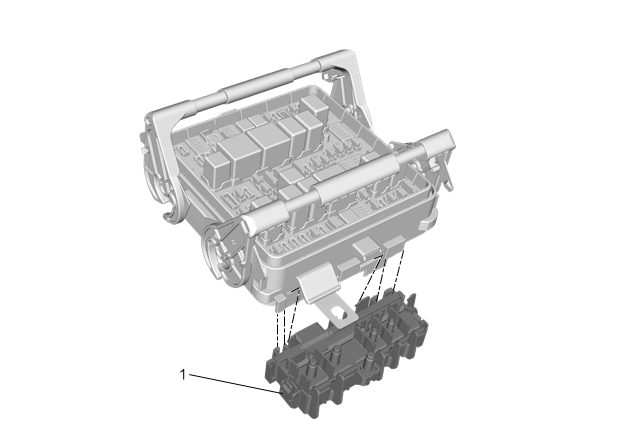

GM4255888Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Wiring Harness Junction Block Replacement
1 Battery Distribution Engine Compartment Fuse Block
Procedure
Release the 2 tab retainers and slide the battery distribution engine compartment fuse block from the engine wiring fuse block.
