Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Human Machine Interface Power, Ground, Serial Data, and Subsystem References
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

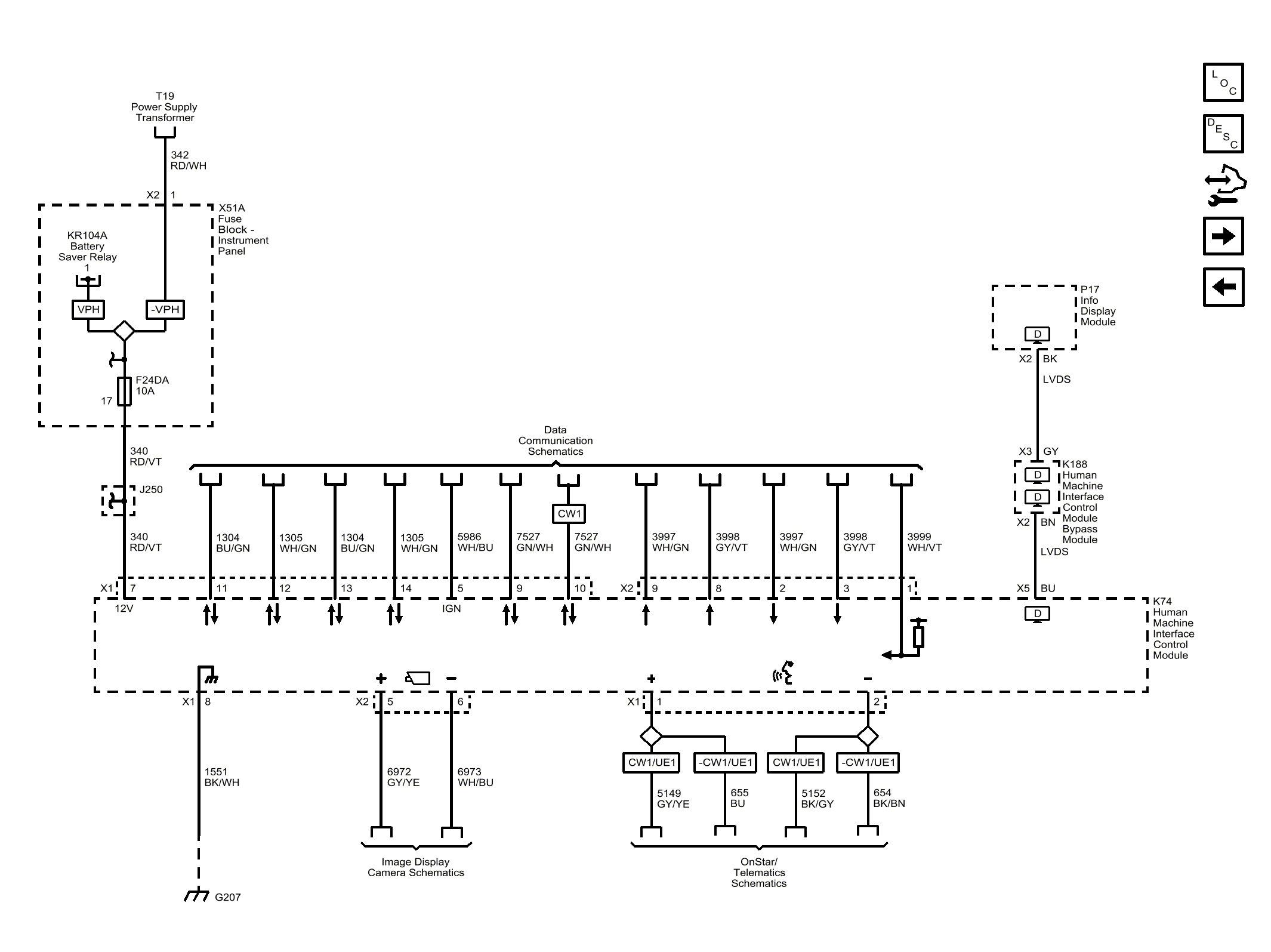

Human Machine Interface Power, Ground, Serial Data, and Subsystem References
