Shift Lock Control Wiring Schematics
>>
Shift Lock Control (M5N/M5U)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

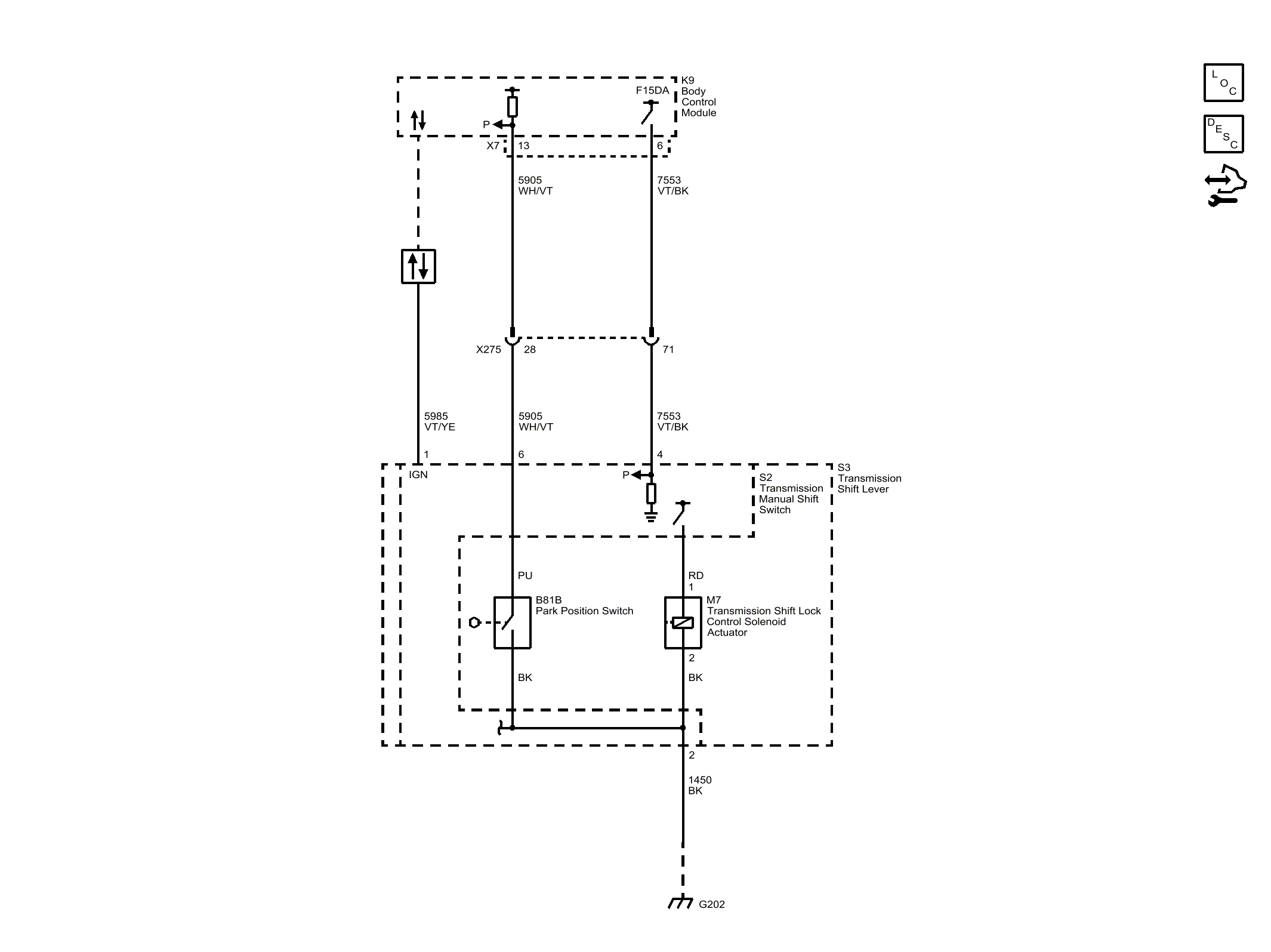

Shift Lock Control (M5N/M5U)
Courtesy of GENERAL MOTORS COMPANY
