Steering Gear Bushing Replacement

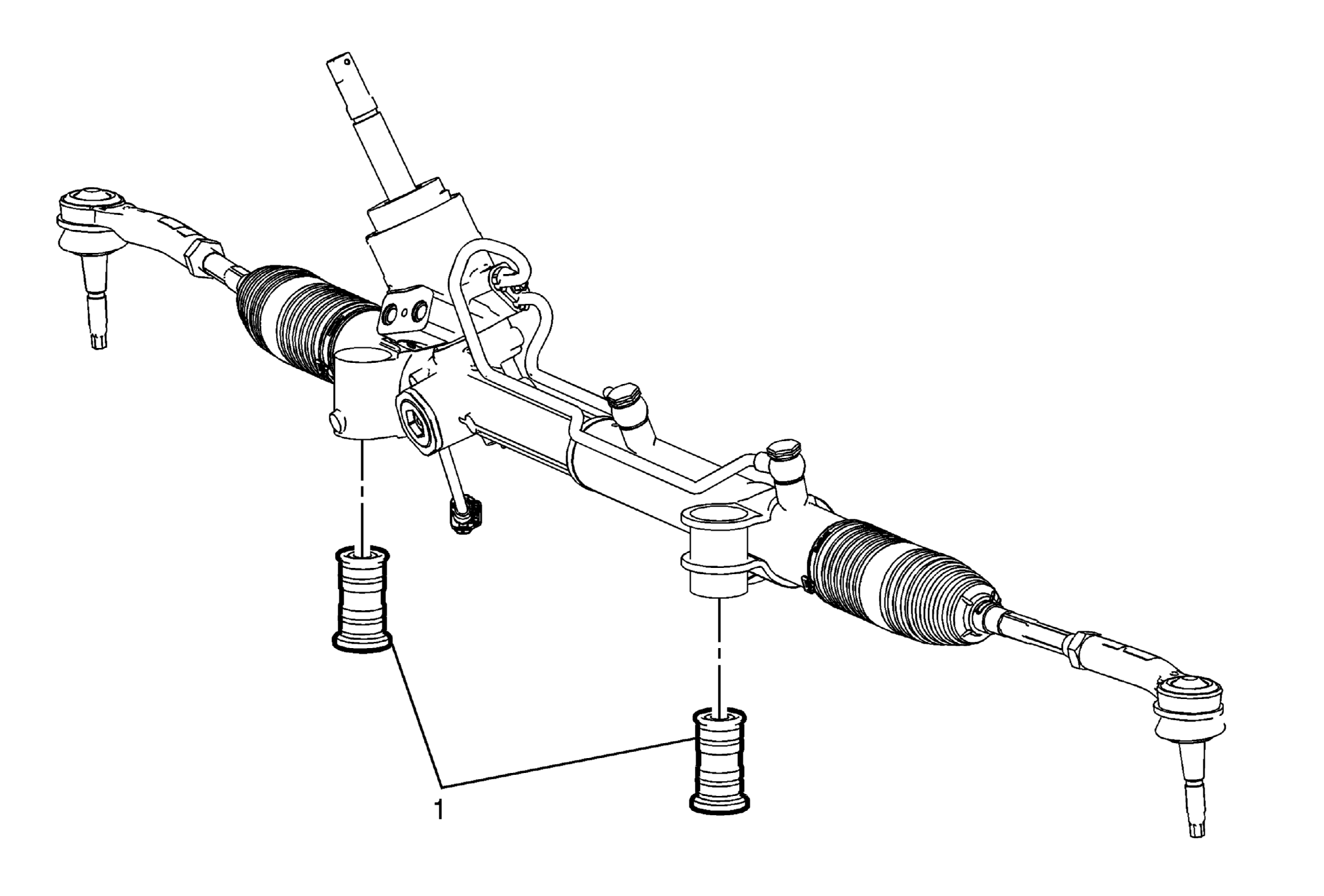

Fig 1: Steering Gear Bushing

GM3452125

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove Steering Gear. Refer to Steering Gear Replacement (FWD, LFX, NXC) Steering Gear Replacement (AWD, LFX, NXC) Steering Gear Replacement (AWD, LF3, NXC)

1

Steering Gear Bushing

Procedure

Use a suitable tool to press out the OLD bushing. DISCARD the bushing.
Lubricate the NEW bushing with a mild soap to aid in installation.
Install the NEW bushing into the steering gear housing.
Use a rubber mallet to tap on the NEW bushing until the bushing completely seats in steering gear.

NOTE:

Before removal, note the direction and how far the OLD bushing is installed in the steering gear to assist in the installation of the NEW bushing.
Ensure the rubber flange on the NEW bushing is completely inserted into the steering gear before pushing in the entire bushing.
