Auxiliary Inputs
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Auxiliary Inputs

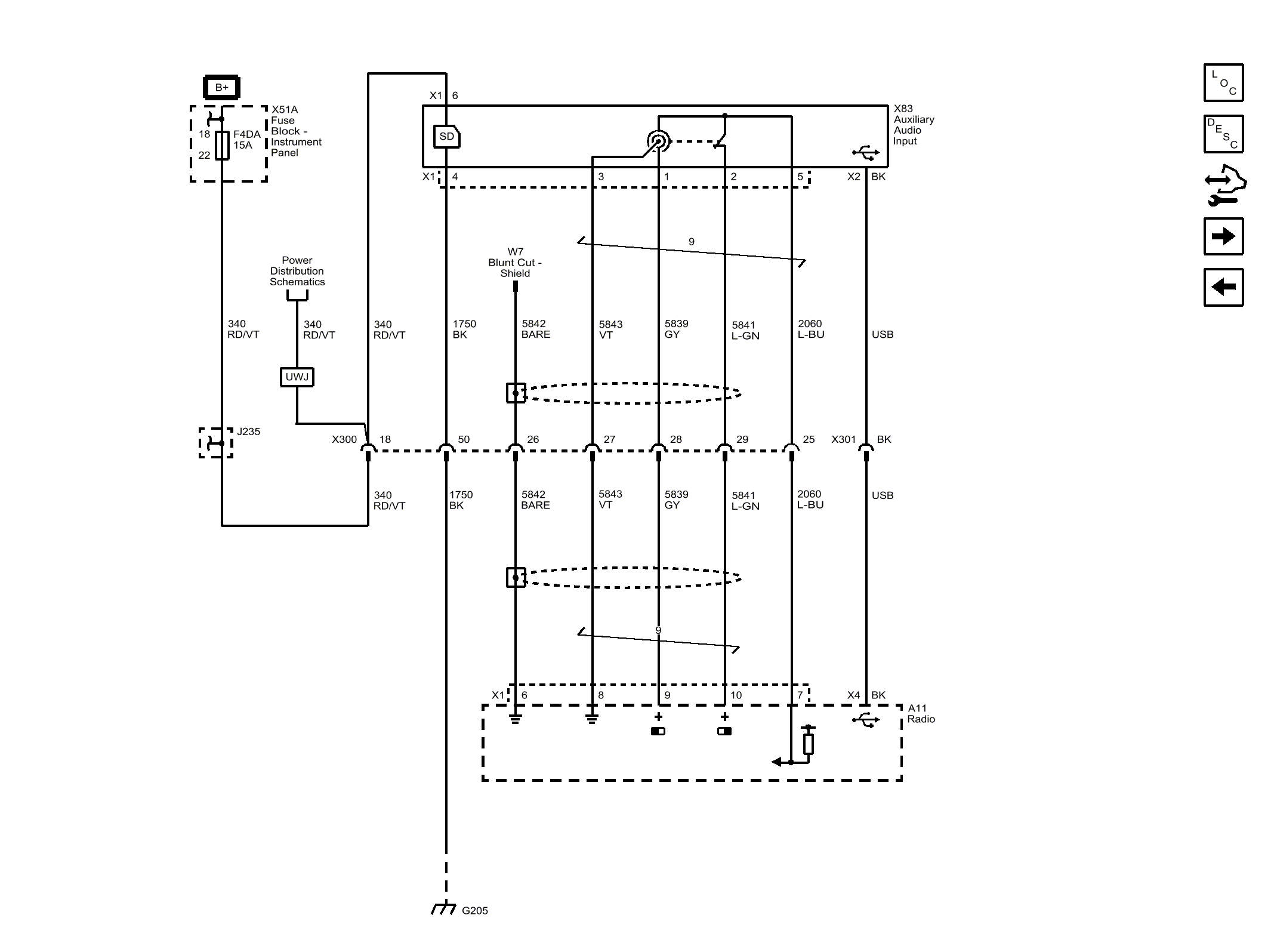

Fig 1: Auxiliary Inputs
Courtesy of GENERAL MOTORS COMPANY
