Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System And Pedestrian Protection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Rearview Camera (without UVH)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Rearview Camera (without UVH)

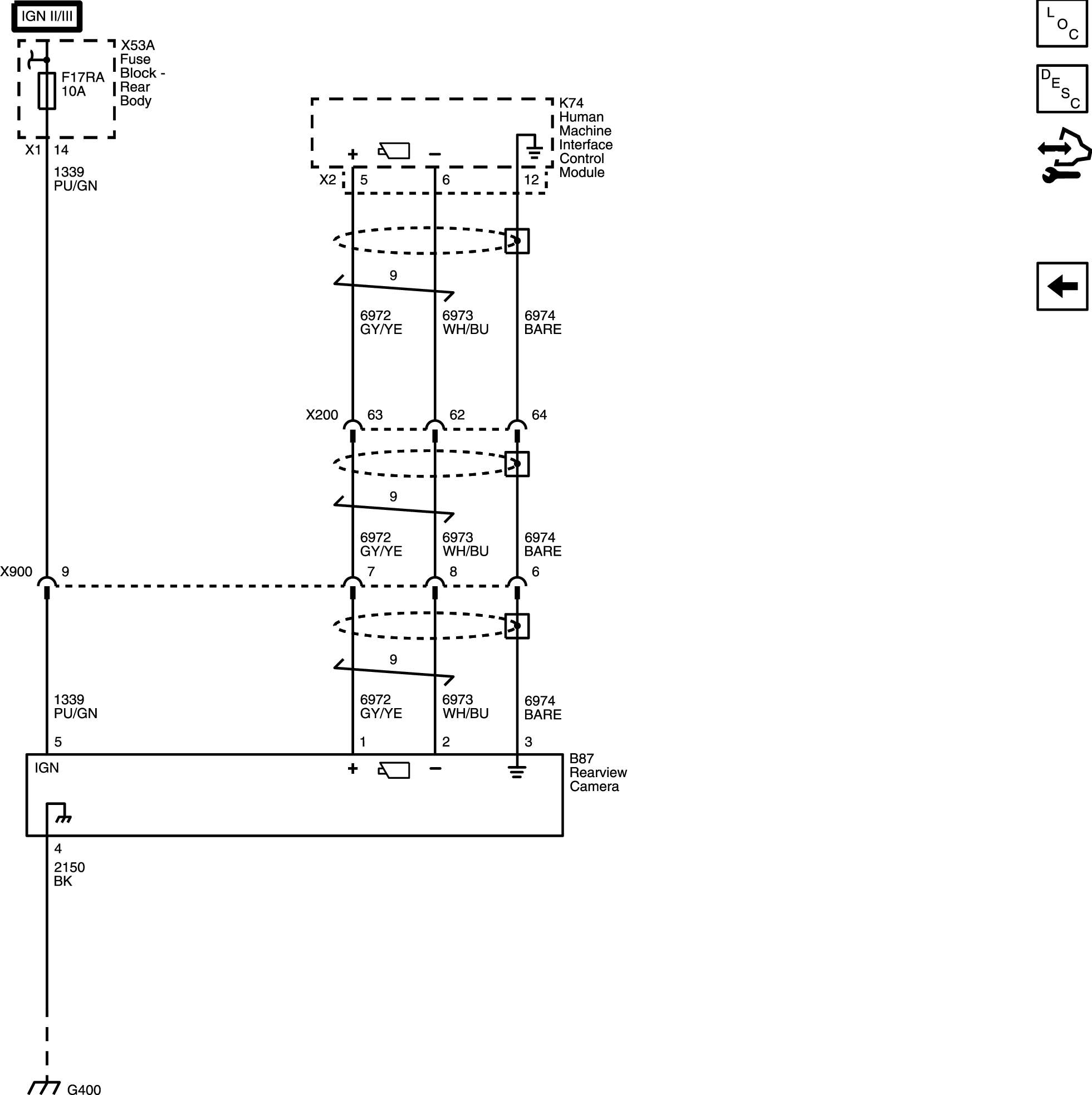

Fig 1: Rearview Camera (without UVH)
Courtesy of GENERAL MOTORS COMPANY
