Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System And Pedestrian Protection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Park Assist - Front Sensors
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Park Assist - Front Sensors

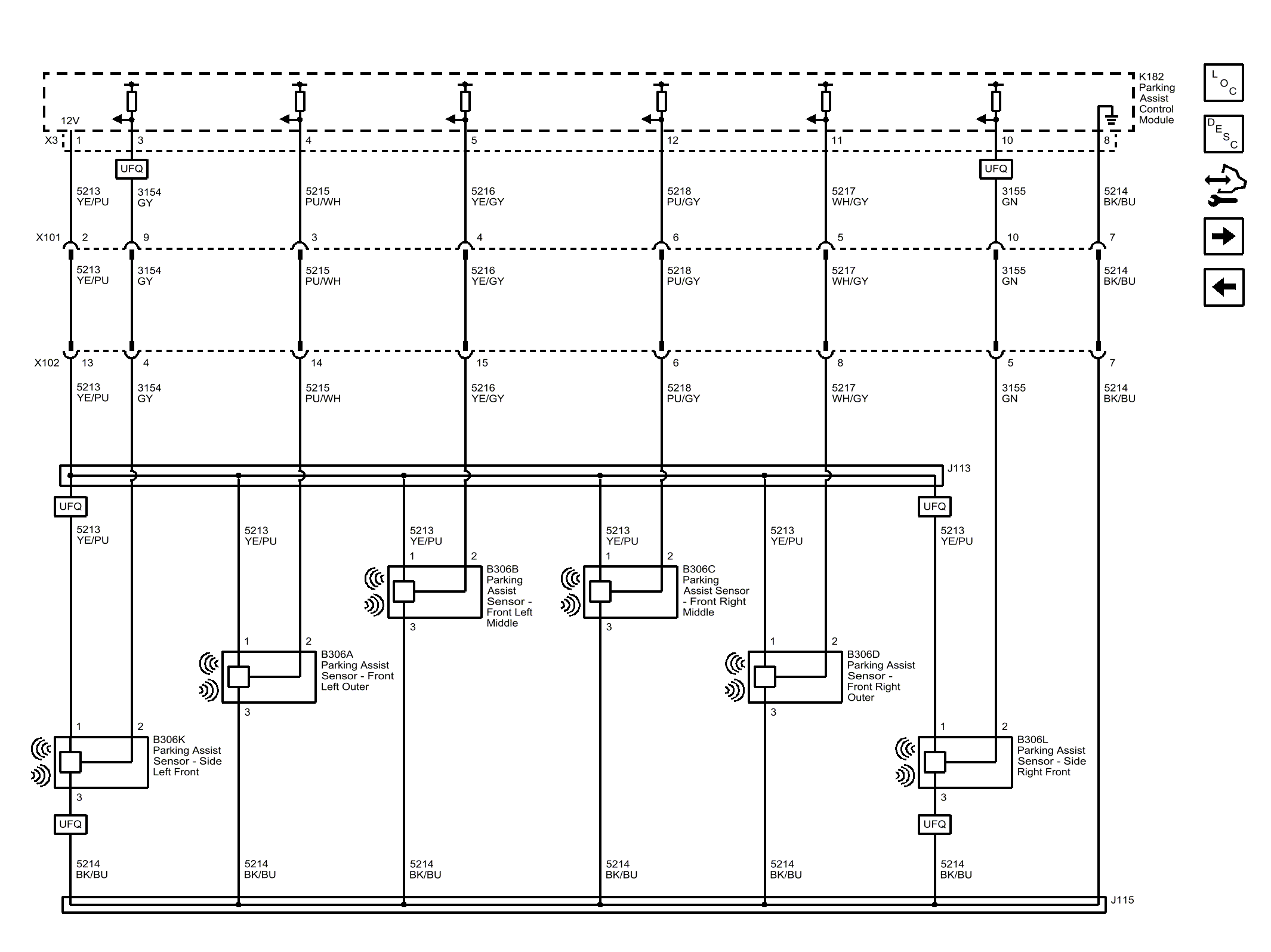

Fig 1: Park Assist - Front Sensors
Courtesy of GENERAL MOTORS COMPANY
