Park Assist - Rear Sensors

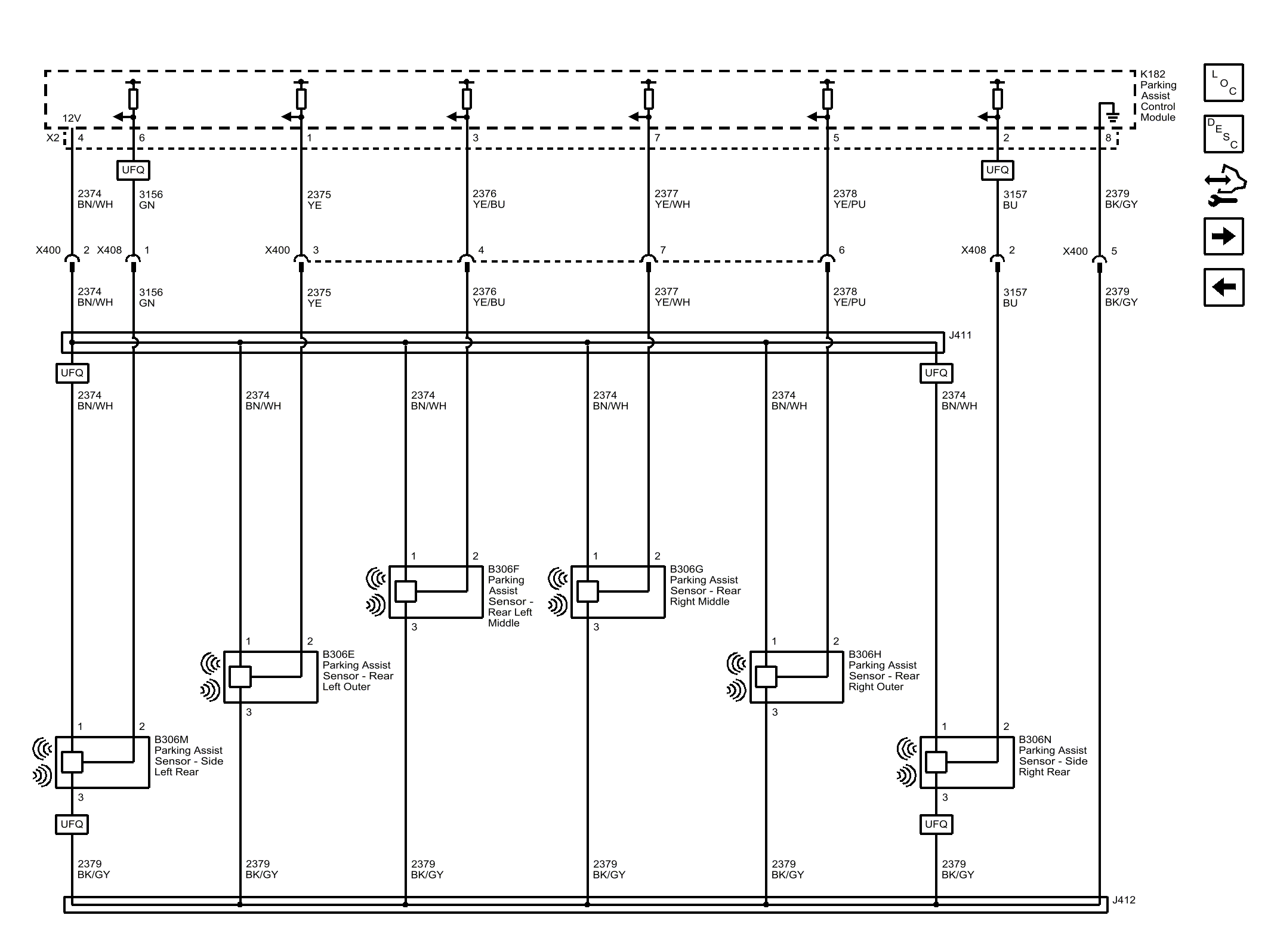

Fig 1: Park Assist - Rear Sensors
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
