Hazard Warning Switch Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

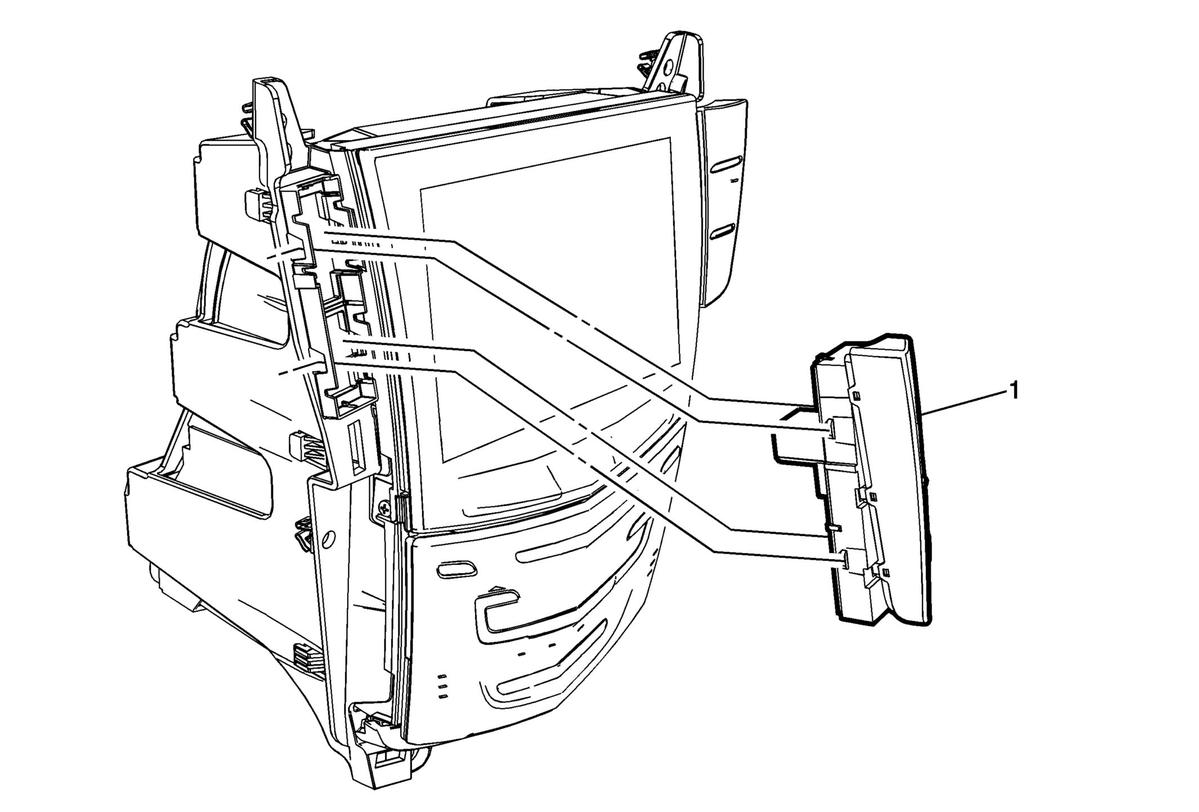

Fig 1: Hazard Warning Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement .
1	Hazard Warning Switch Procedure Using the appropriate tool, depress the tabs on switch to remove from the bracket. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement .

Hazard Warning Switch

Procedure

Using the appropriate tool, depress the tabs on switch to remove from the bracket.
Disconnect the electrical connector.
