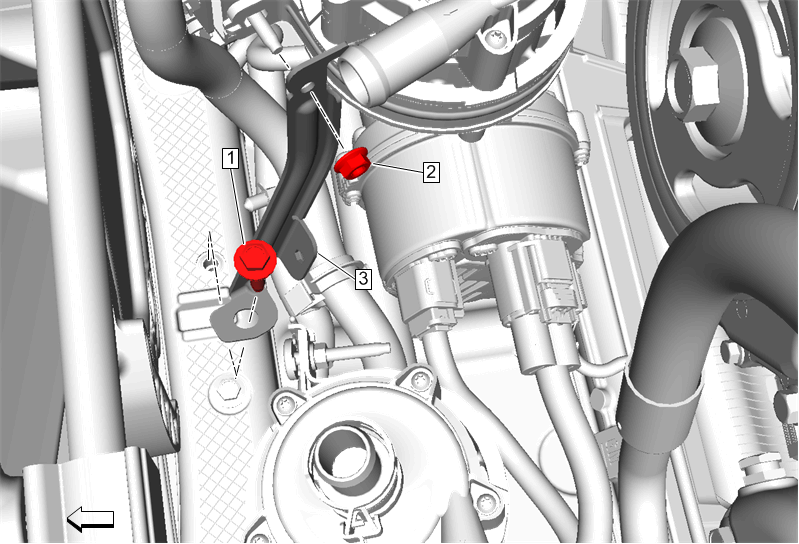

Generator Control Module Coolant Pump Bracket Replacement (At Heater Coolant Pump)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Assembly Replacement |
|
| 1 | Generator Control Module Coolant Pump Bracket Bolt
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 2 | Generator Control Module Coolant Pump Bracket Nut Tighten 9 N.m (80 lb in) |
| 3 | Generator Control Module Coolant Pump Bracket Preliminary Procedure Engine Wiring Harness Retainer @ Generator Control Module Coolant Pump Bracket» Remove |
