Engine Controls And Fuel - 2.0L (LTG) - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Controls - Mode Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Controls - Mode Switch

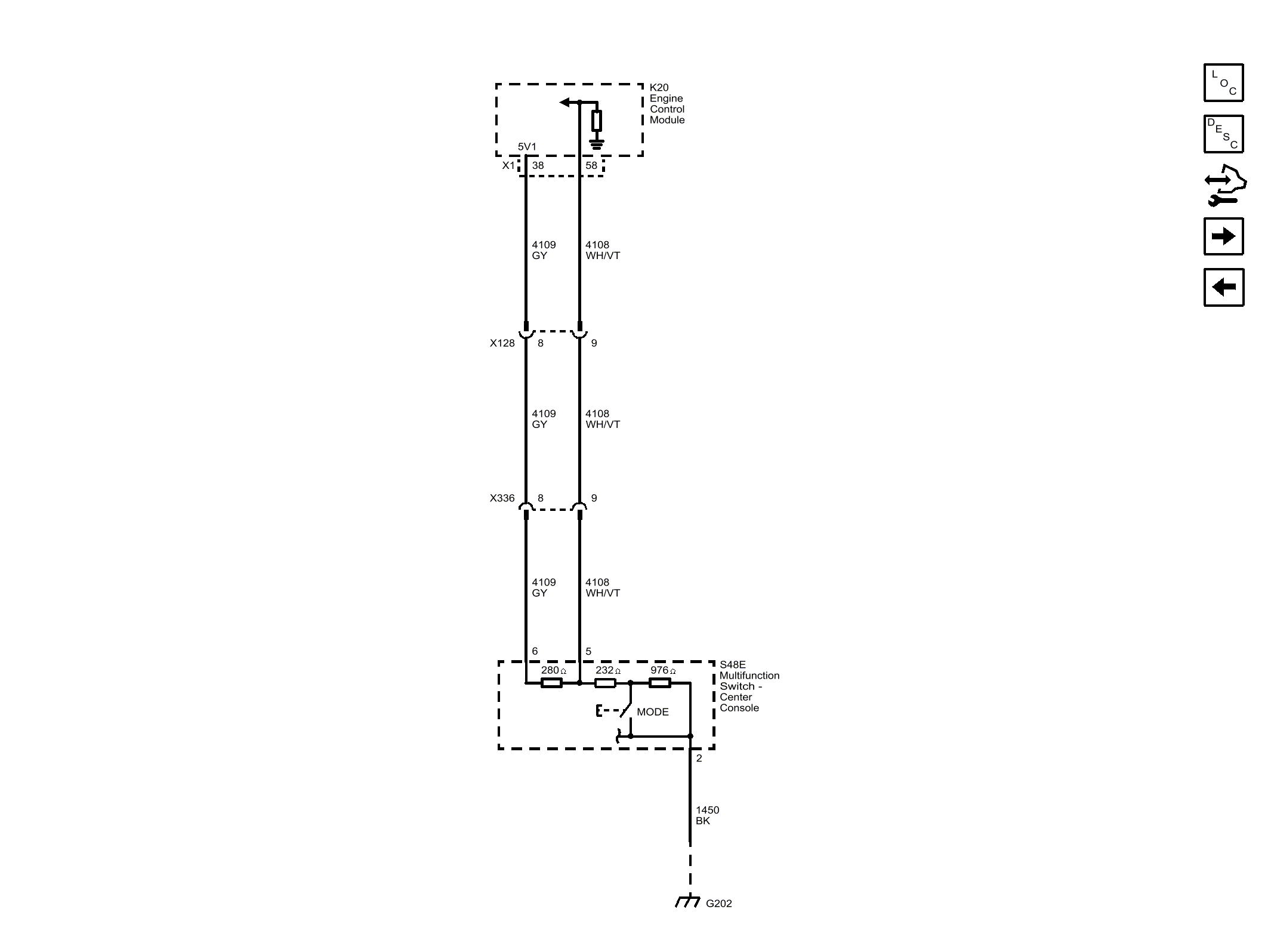

Fig 1: Controls - Mode Switch
Courtesy of GENERAL MOTORS COMPANY
