Rear Body Exhaust Heat Shield Replacement

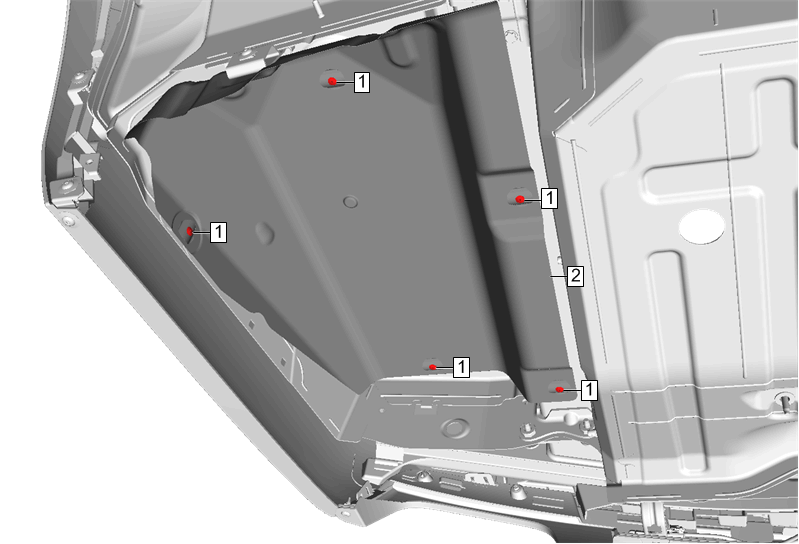

Fig 1: Rear Body Exhaust Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Exhaust Muffler Replacement (LTG without HP9) Exhaust Muffler Replacement (LGW, LGX) Exhaust Muffler Replacement (LTG with HP9)
1	Rear Body Exhaust Heat Shield Rivet [5x] Procedure Drill out the rivets.
2	Rear Body Exhaust Heat Shield
