Battery Negative Cable Disconnection and Connection

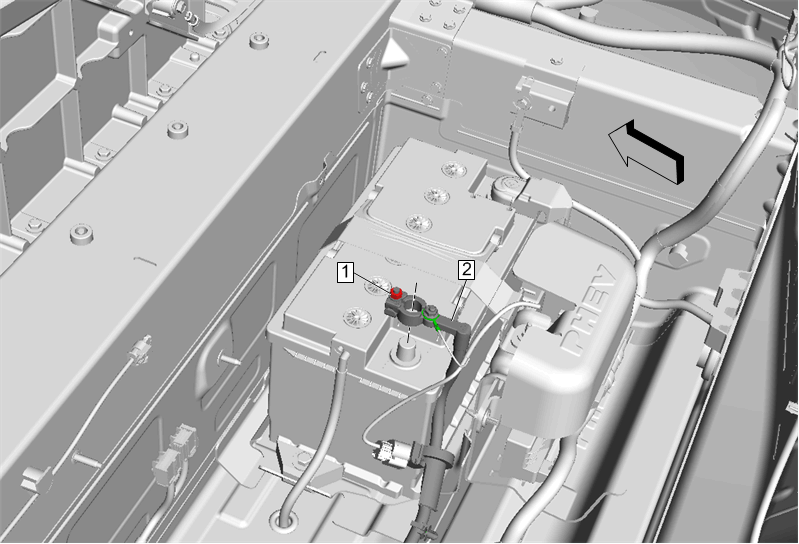

Fig 1: Battery Negative Post Clamp Nut
GM4474566Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Floor Stowage Compartment Tray Replacement (With HP9)
1 Battery Negative Post Clamp Nut
WARNING: Refer to Battery Disconnect Warning .
CAUTION: Refer to Fastener Caution .

Tighten
4 N.m (35 lb in)
2 Battery Negative Cable
