Ignition Power and Ignition Main Relays

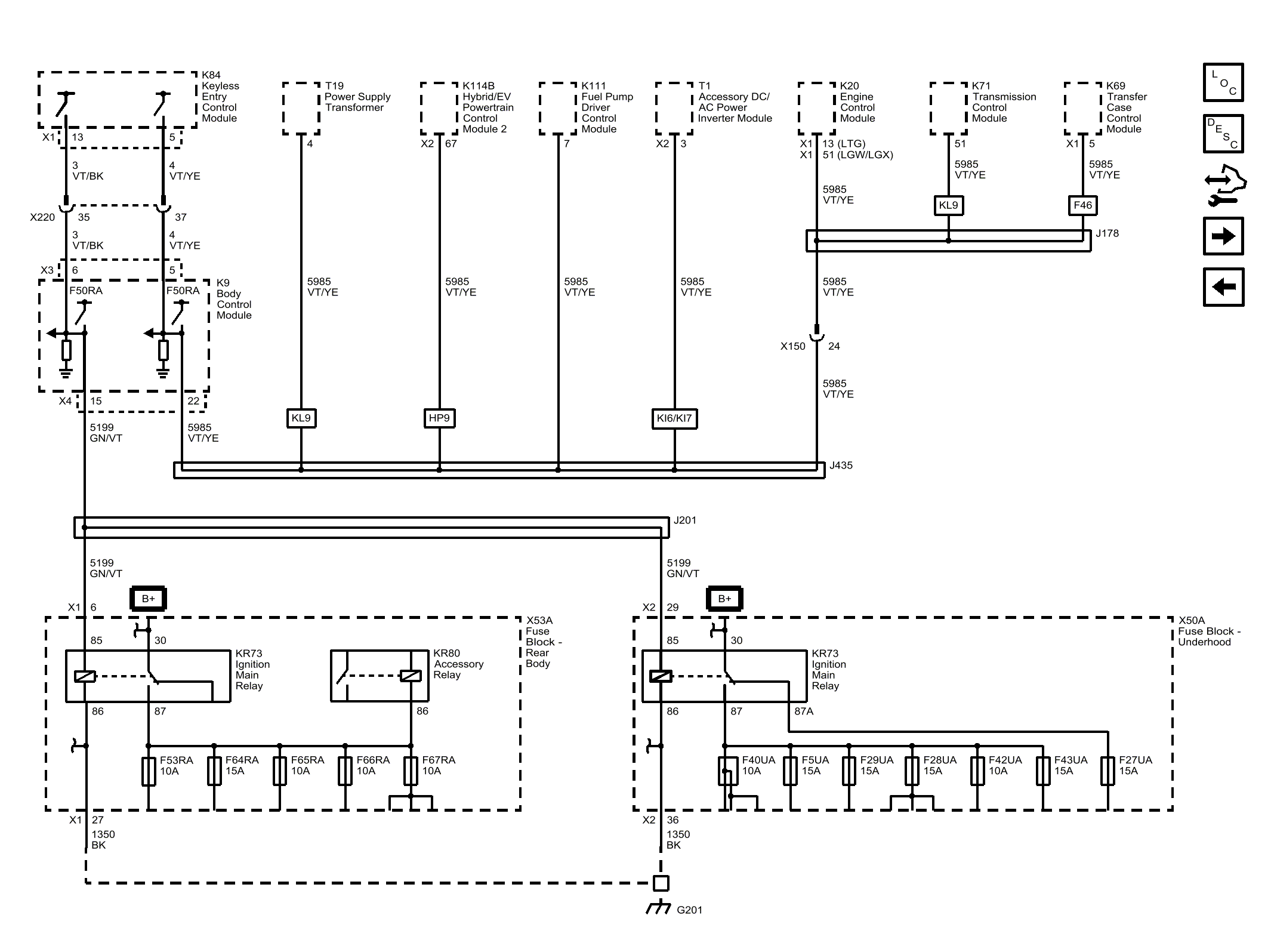

Fig 1: Ignition Power and Ignition Main Relays
GM4490386Courtesy of GENERAL MOTORS COMPANY
