Rear Seat Lumbar Support Replacement

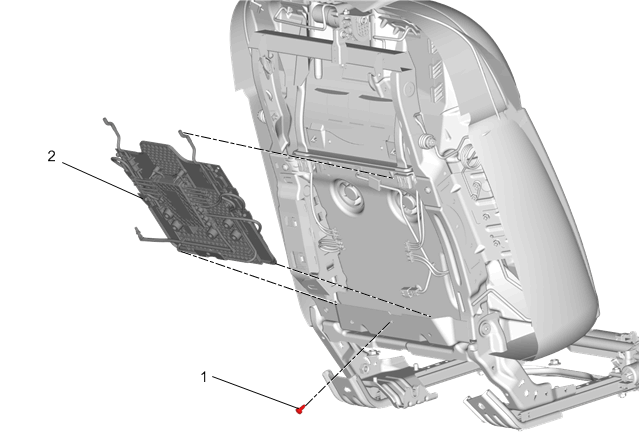

Fig 1: Rear Seat Lumbar Support
GM4258111Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Rear Seat Removal and Installation
  2. Reposition the seat back cushion cover. Refer to Rear Seat Back Cushion Cover and Pad Replacement (except Platinum) and/or Rear Seat Back Cushion Cover and Pad Replacement (Platinum)
1 Rear Seat Lumbar Support Fastener
CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)
2 Rear Seat Lumbar Support

Procedure

  1. Disconnect the air hoses.
  2. Disconnect the electrical connectors.
