Front Floor Console Compartment Replacement

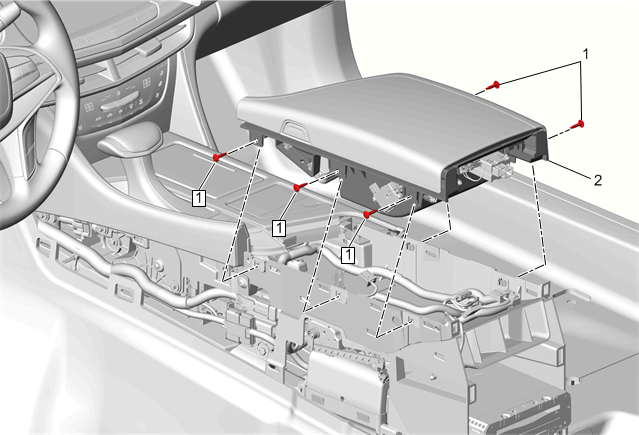

Fig 1: Front Floor Console Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Applique Replacement - Left Side Front Floor Lower Console Replacement (Left Side) Front Floor Lower Console Replacement (Right Side)
1	Front Floor Console Bolt [5x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Compartment Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Front Floor Console Bolt [5x]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Floor Console Compartment

Procedure
