Steering Wheel Controls
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Steering Wheel Controls

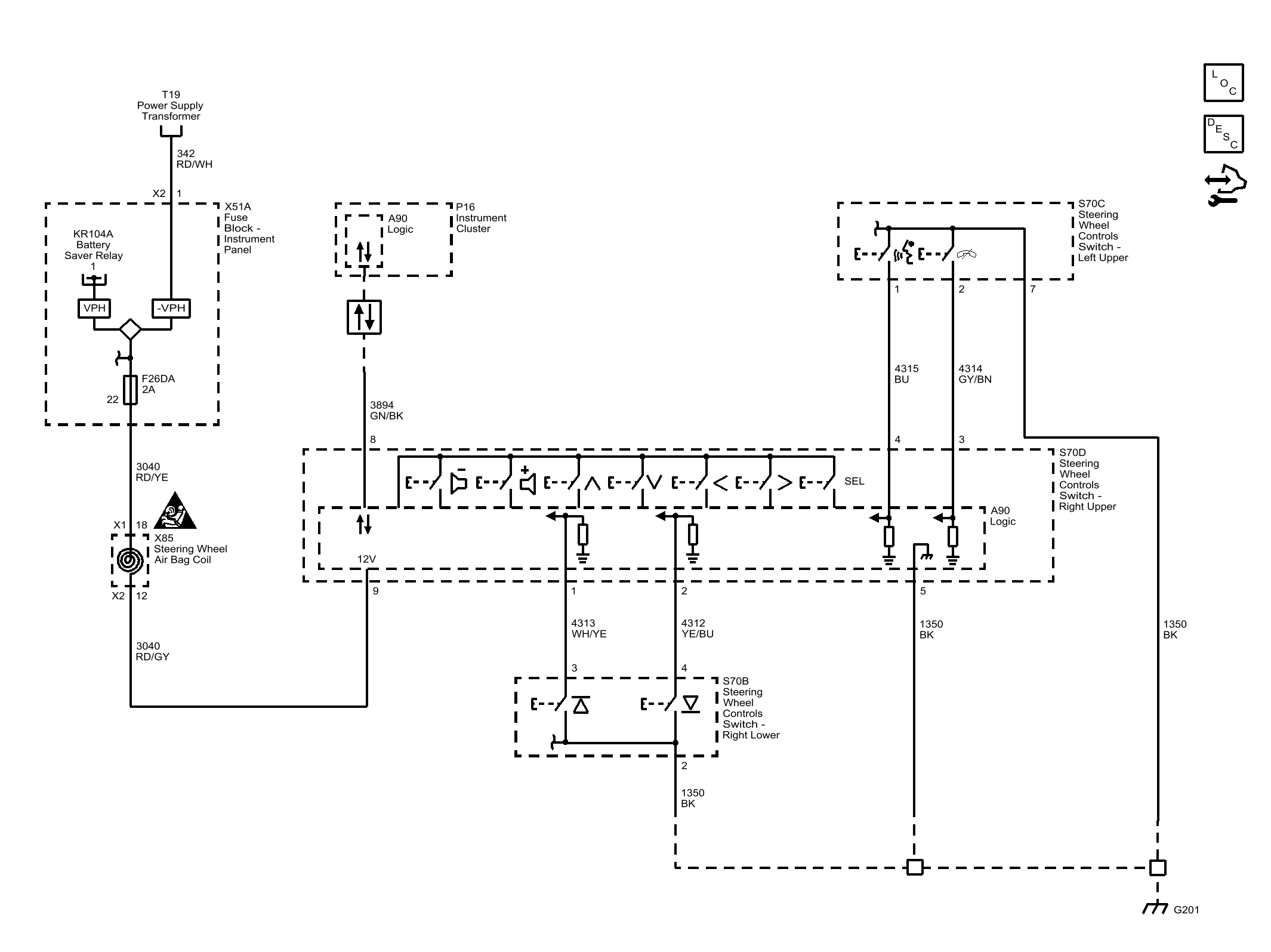

Fig 1: Steering Wheel Controls
Courtesy of GENERAL MOTORS COMPANY
