Human Machine Interface Power, Ground, Serial Data and Subsystem References

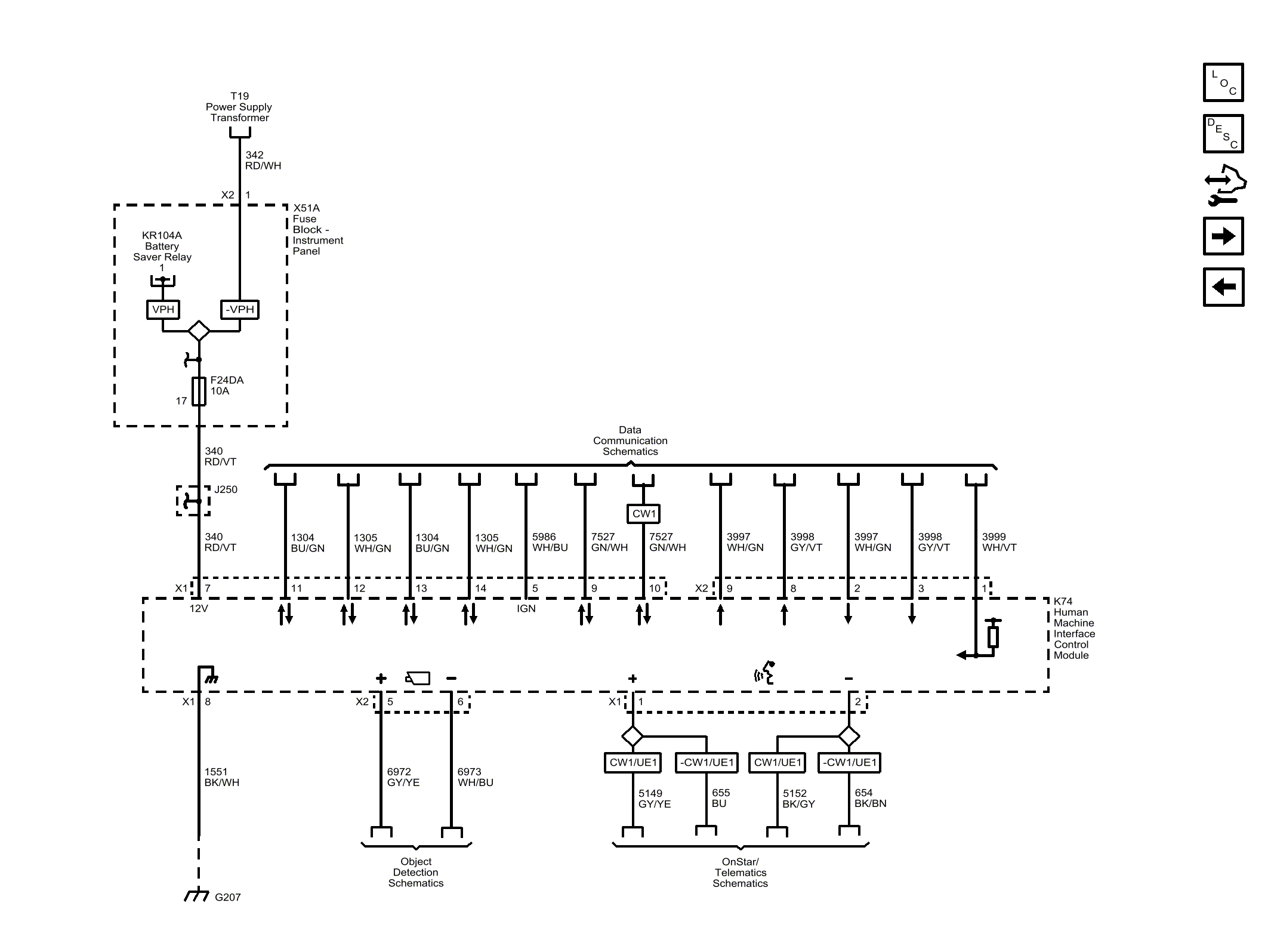

Fig 1: Human Machine Interface Power, Ground, Serial Data and Subsystem References
GM4489717Courtesy of GENERAL MOTORS COMPANY
