Object Detection System And Pedestrian Protection System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Park Assist - Module Power, Ground and Serial Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Park Assist - Module Power, Ground and Serial Data

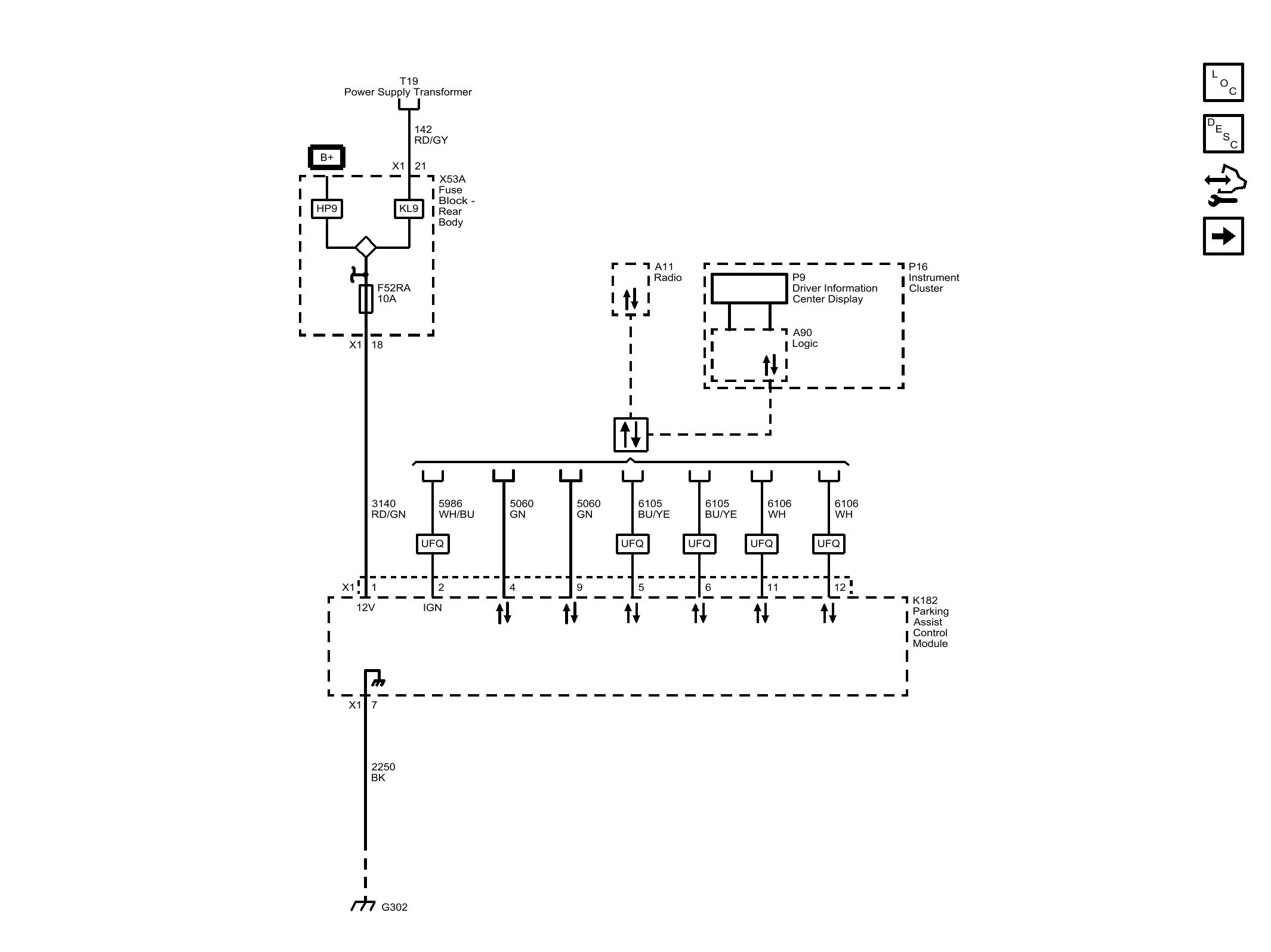

Fig 1: Park Assist - Module Power, Ground and Serial Data
Courtesy of GENERAL MOTORS COMPANY
