Cruise Control Wiring Schematics
>>
Cruise Control
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cruise Control

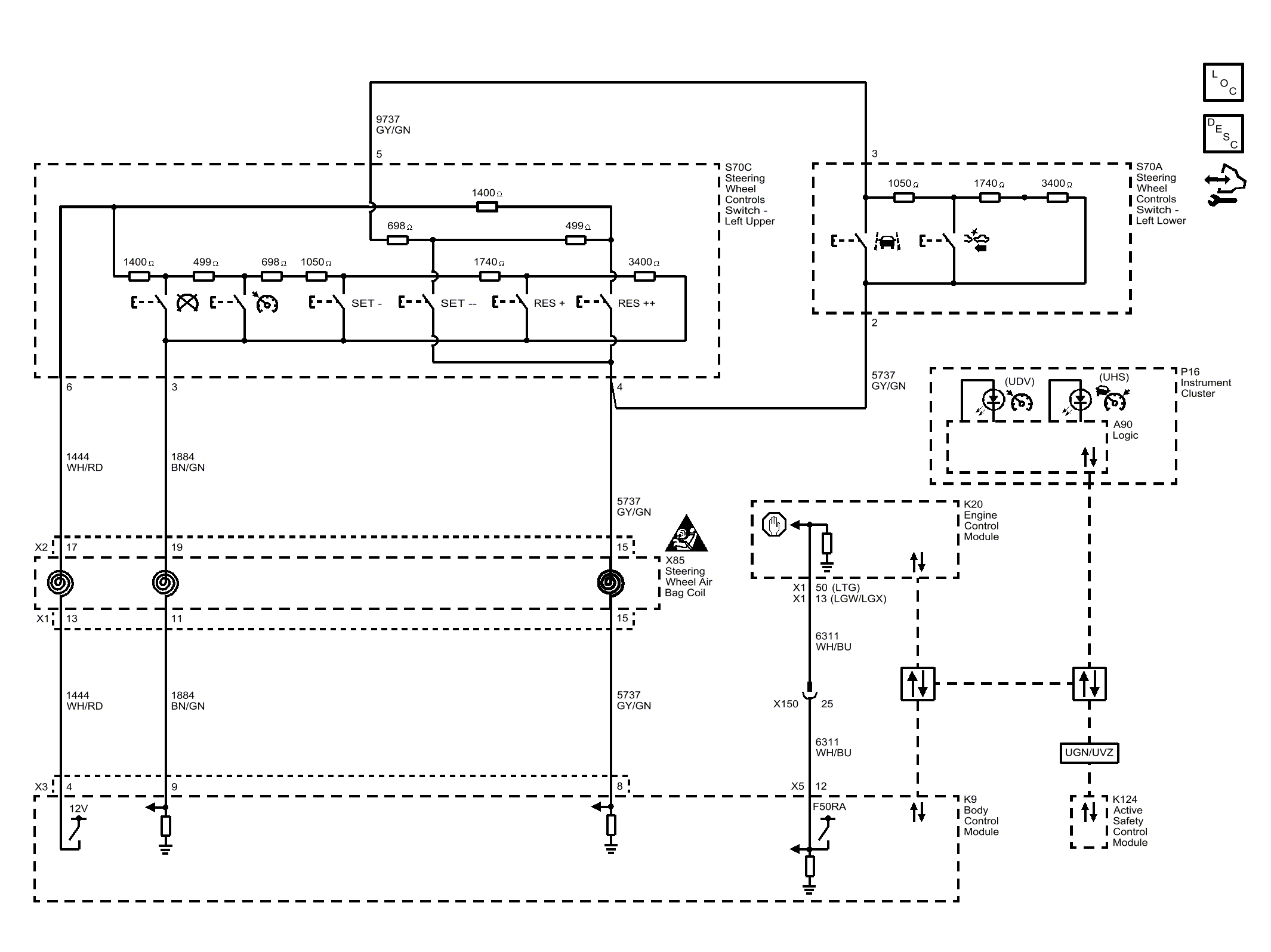

Fig 1: Cruise Control
Courtesy of GENERAL MOTORS COMPANY
