Fuel Pump Insulator Replacement (Outer)

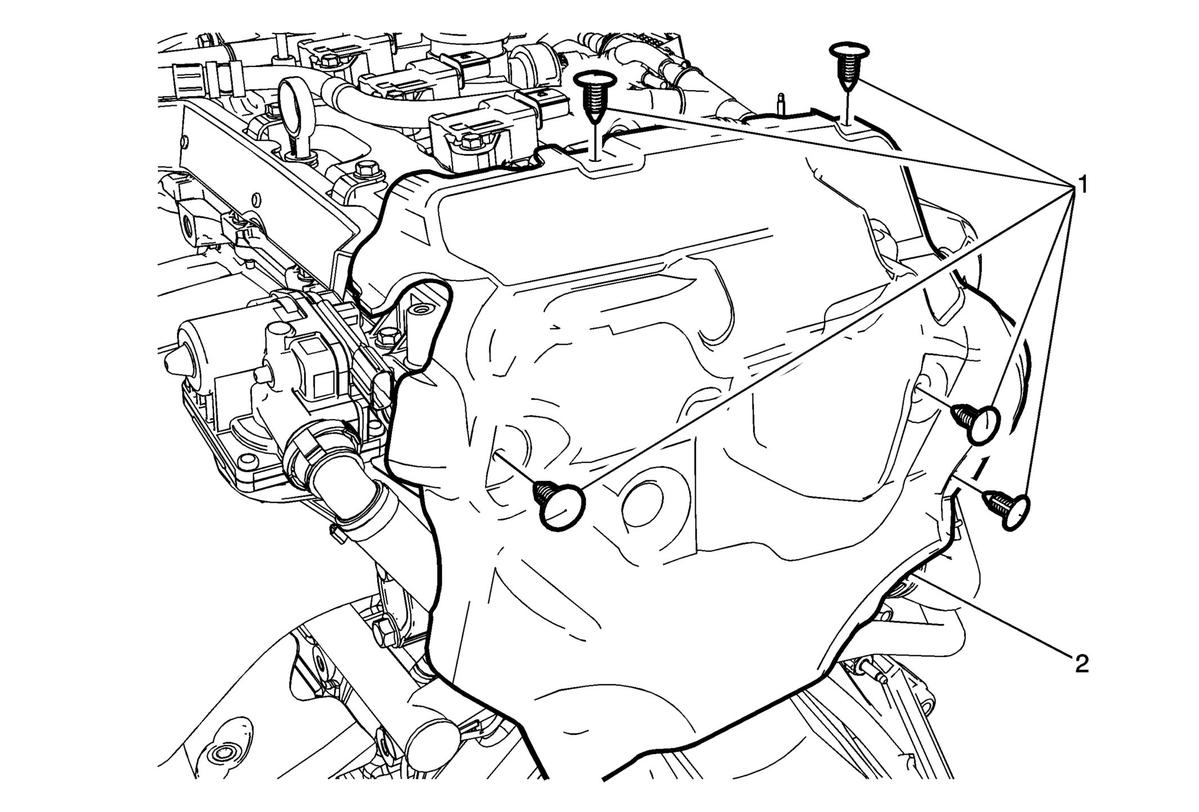

Fig 1: Fuel Pump Insulator (Outer)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the plenum front panel. Refer to Plenum Front Panel Replacement .
1	Fuel Pump Insulator Retainers
2	Fuel Pump Insulator WARNING: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove the plenum front panel. Refer to Plenum Front Panel Replacement .

Fuel Pump Insulator Retainers

Fuel Pump Insulator

WARNING:

The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.
