Communication Enable (1 of 2)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Communication Enable (1 of 2)

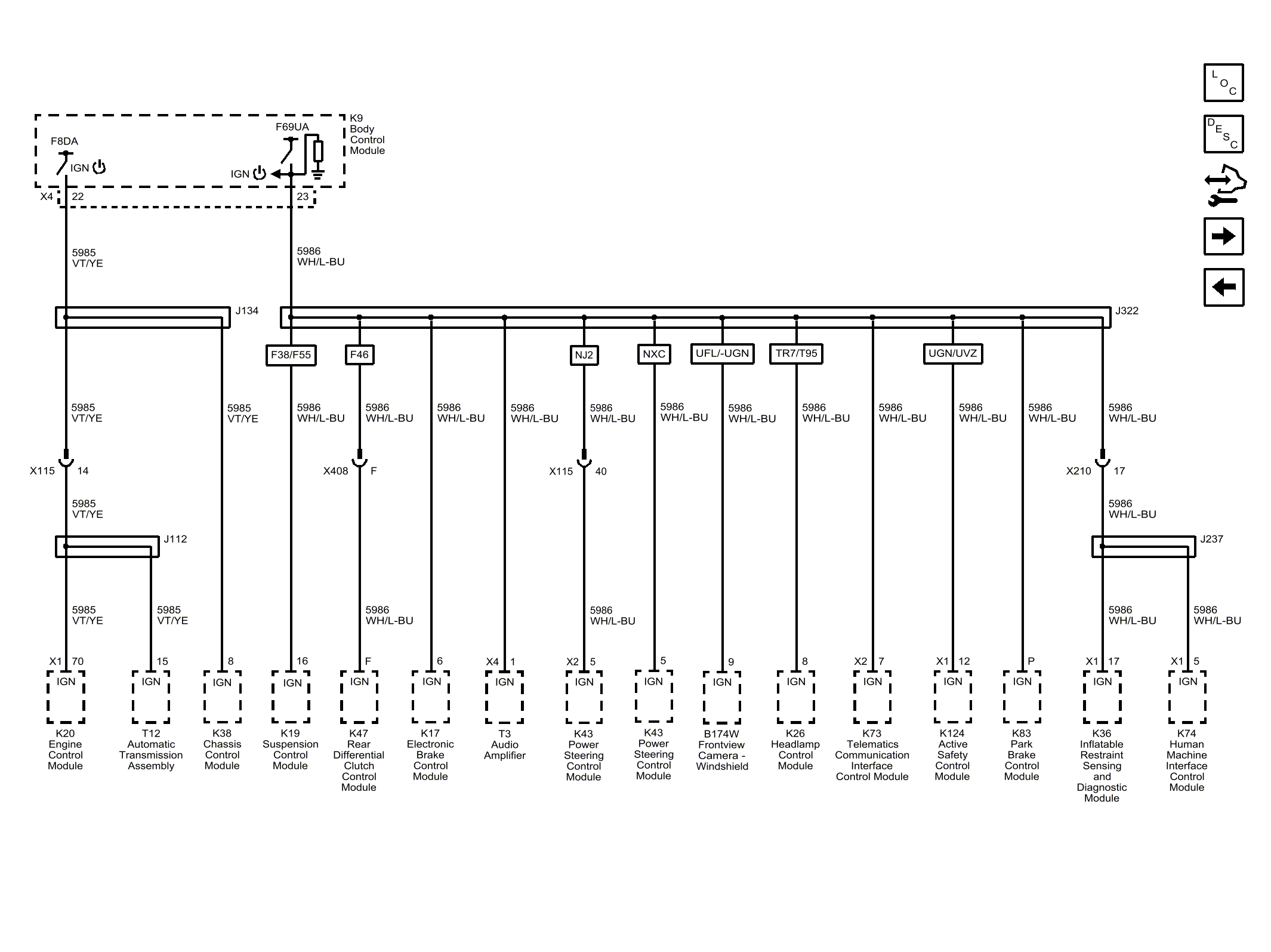

Fig 1: Communication Enable (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
