Antilock Brake System Wiring Schematics
>>
Module Power, Ground, Subsystem References and Brake Applied Signal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Module Power, Ground, Subsystem References and Brake Applied Signal

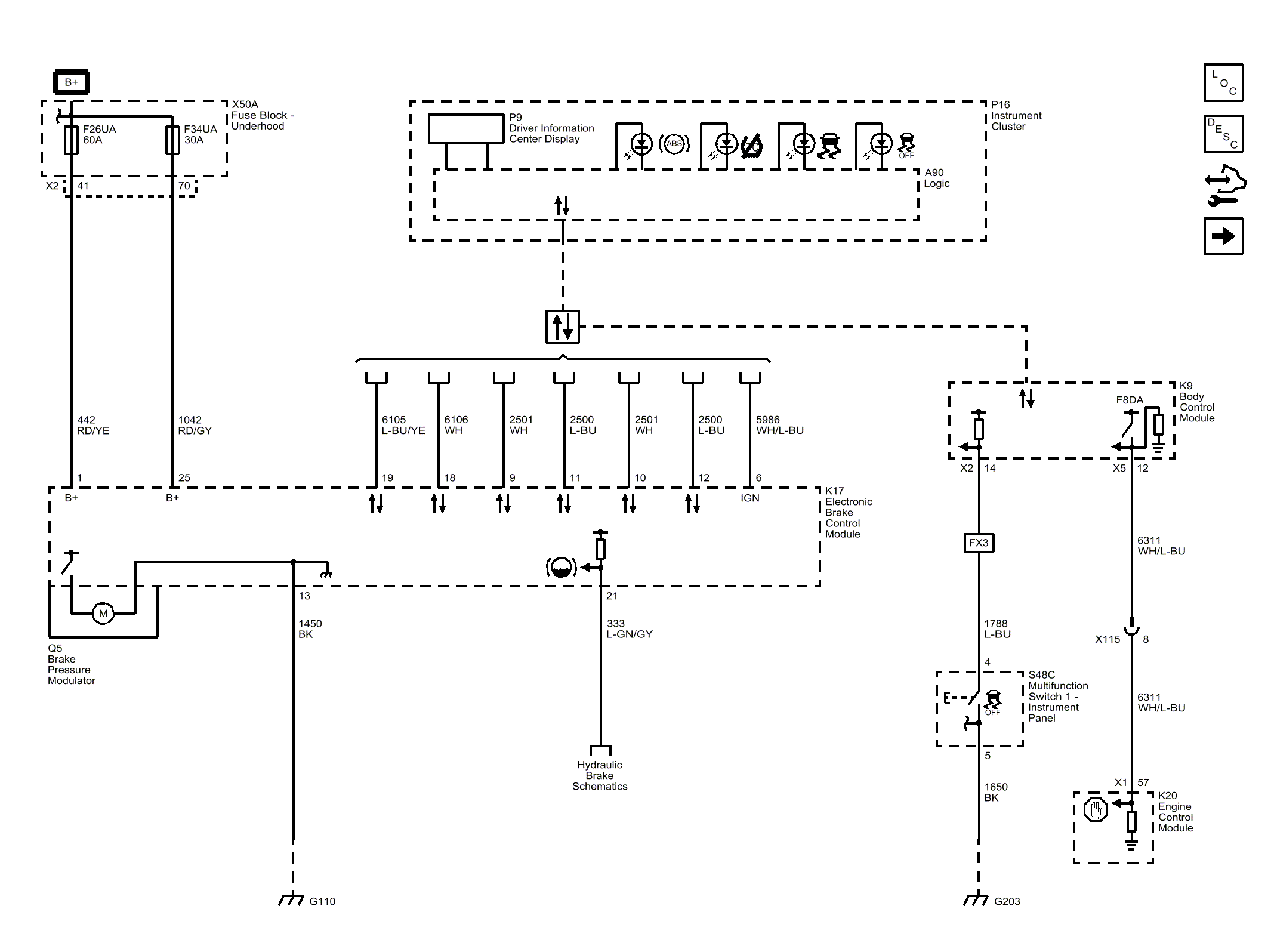

Fig 1: Module Power, Ground, Subsystem References and Brake Applied Signal
Courtesy of GENERAL MOTORS COMPANY
