Liftgate Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Liftgate Switch

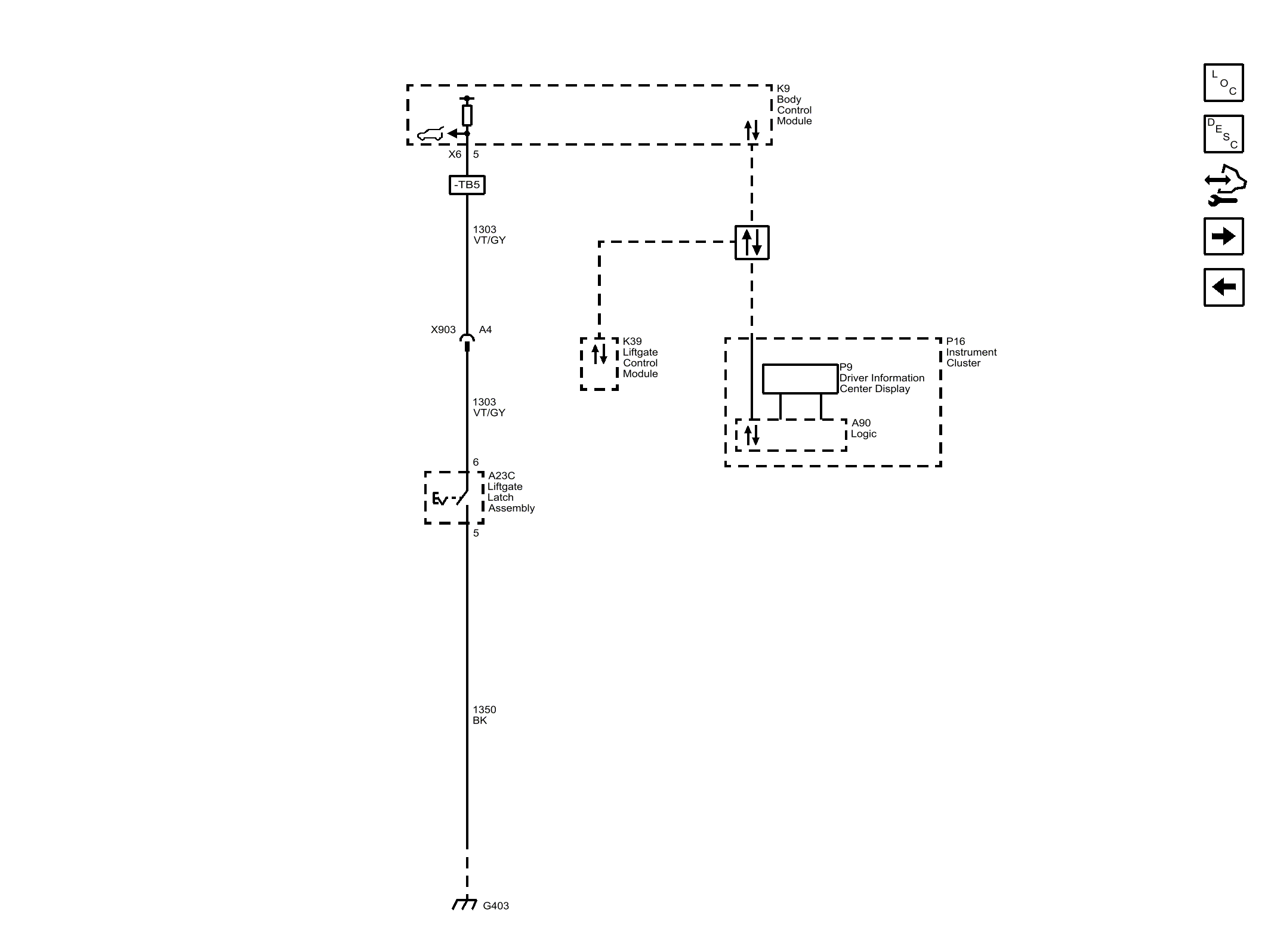

Fig 1: Liftgate Switch
Courtesy of GENERAL MOTORS COMPANY
