Front Side Door Outside Handle Bracket Replacement

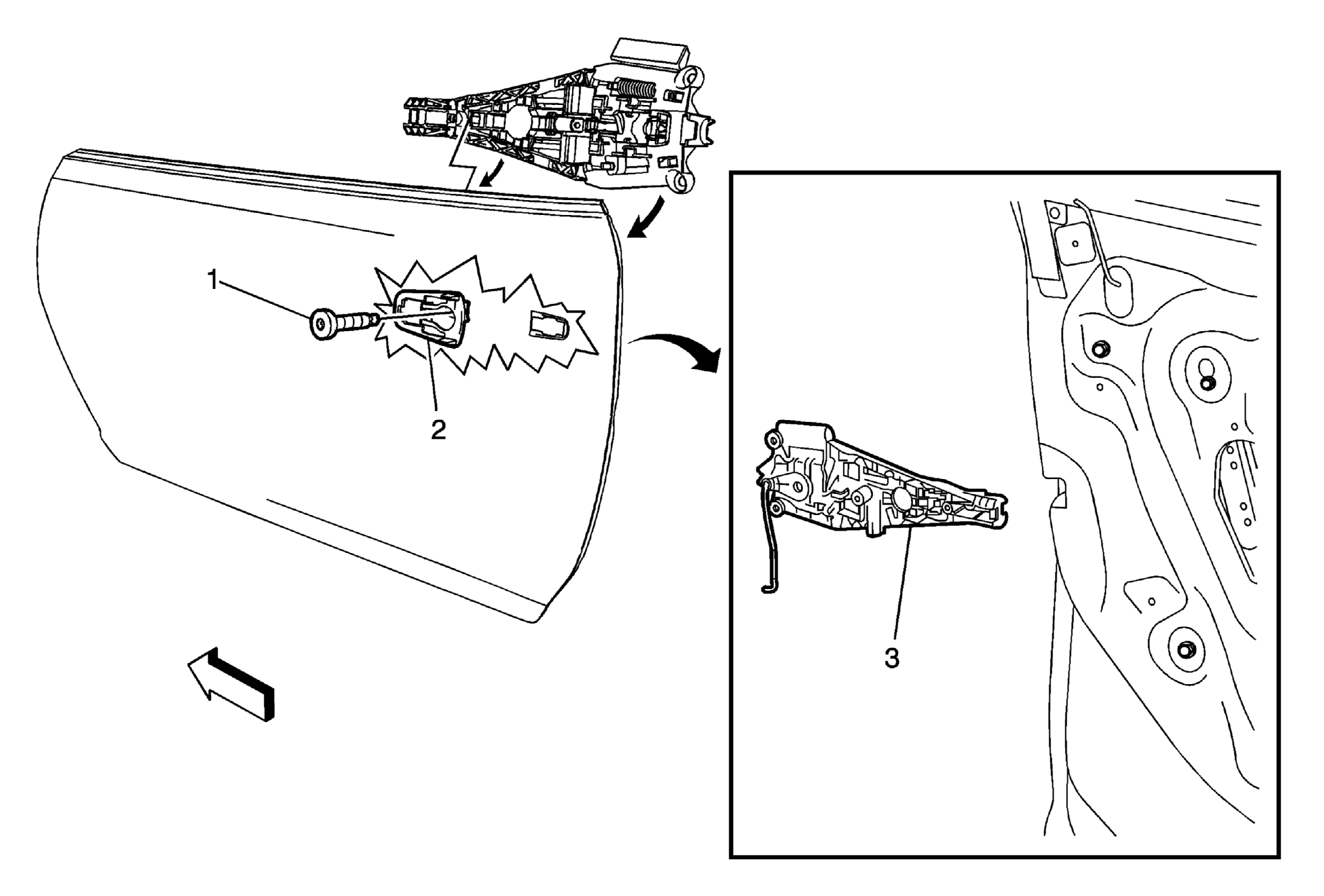

Fig 1: Rear Side Door Outside Handle Bracket & Components
GM2177982Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
  2. Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement (Base) Front Side Door Outside Handle Replacement (Pass Key Entry ATH) .
1 Front Side Door Outside Handle Bracket Fastener
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove the front side door water deflector.
  2. Disconnect the electrical connectors.
  3. Release the front side door outside handle rod clip.
  4. Release the front side door lock cylinder rod from the door lock.

Tighten
4.5 N.m (39 lb in)
2 Front Side Door Outside Handle Insulator
3 Front Side Door Outside Handle Bracket

Procedure

  1. Transfer components as necessary.
  2. Inspect the door locking system for proper operation before installing the trim panel.
