Shift Lock Control (M5T, M5N, M5U)

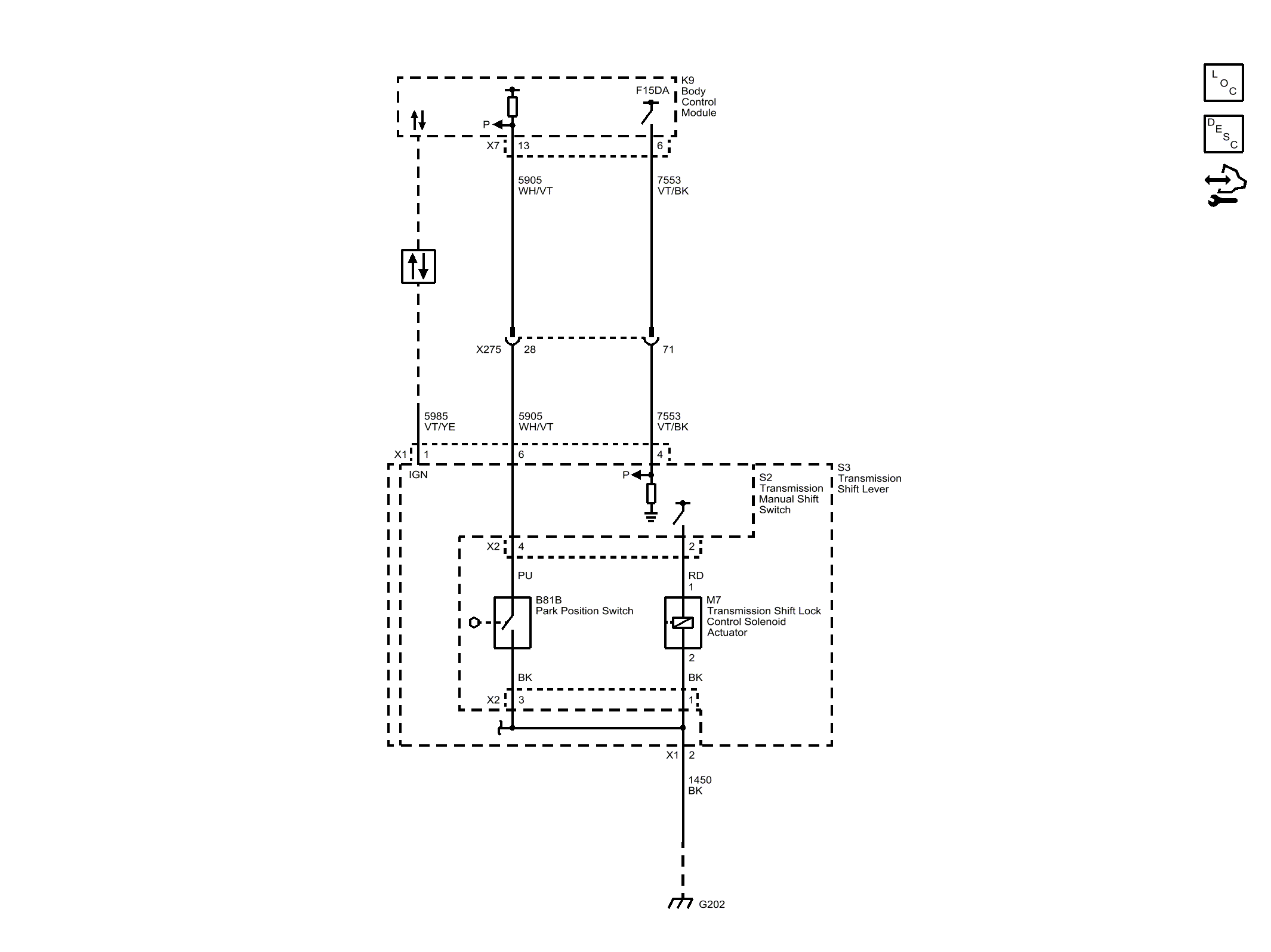

Fig 1: Shift Lock Control (M5T, M5N, M5U)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
