Manual Transmission Components (M3L)

Manual Transmission Components (M3L)

Items
1. B209 Neutral Position Sensor (KL9 with M3L) B209 Neutral Position Sensor
2. B16 Backup Lamp Switch (M3L) B16 Backup Lamp Switch
3. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (M3L)

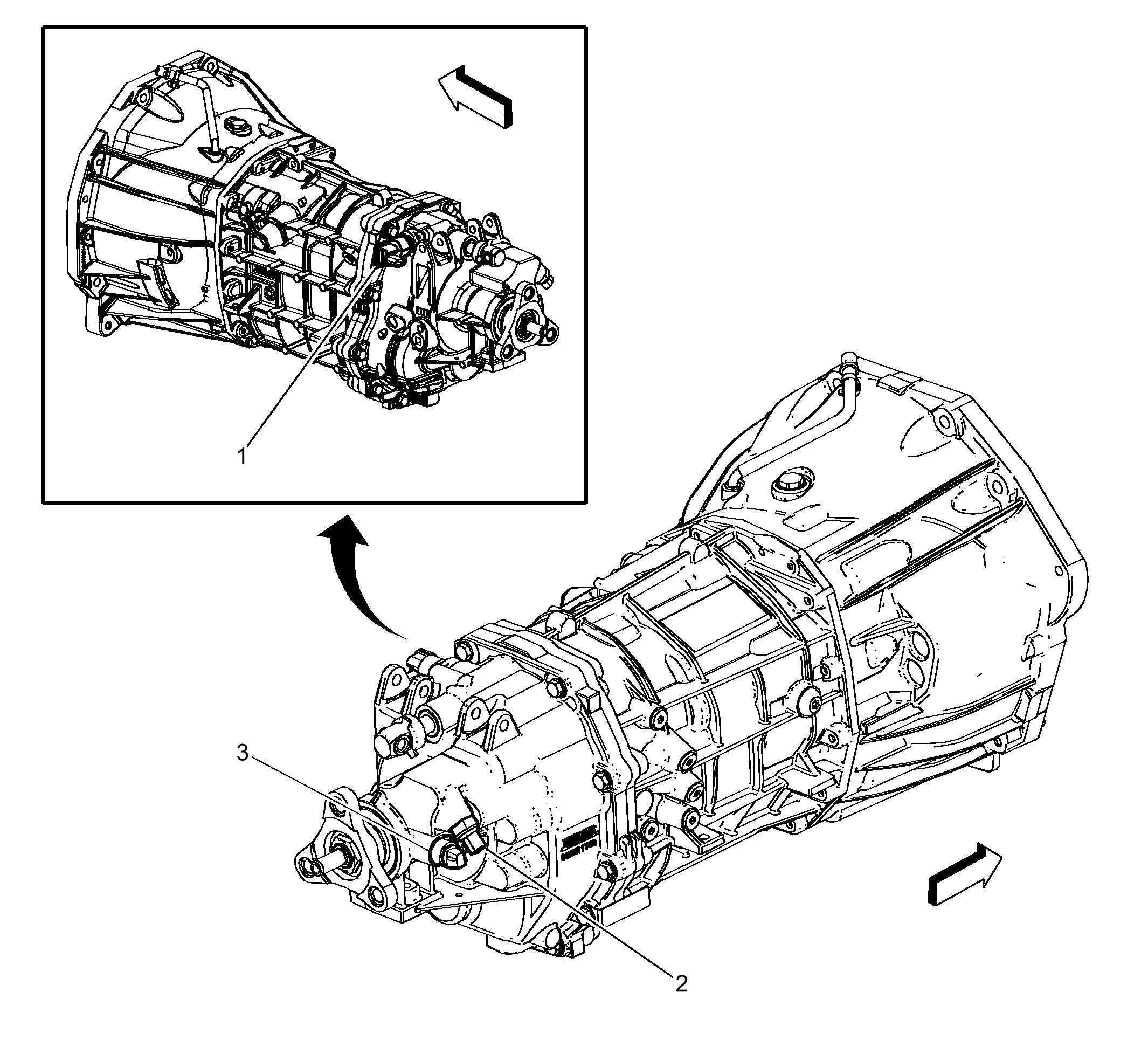

Fig 1: Manual Transmission Components (M3L)
GM4055907Courtesy of GENERAL MOTORS COMPANY
