Chassis High Speed GMLAN

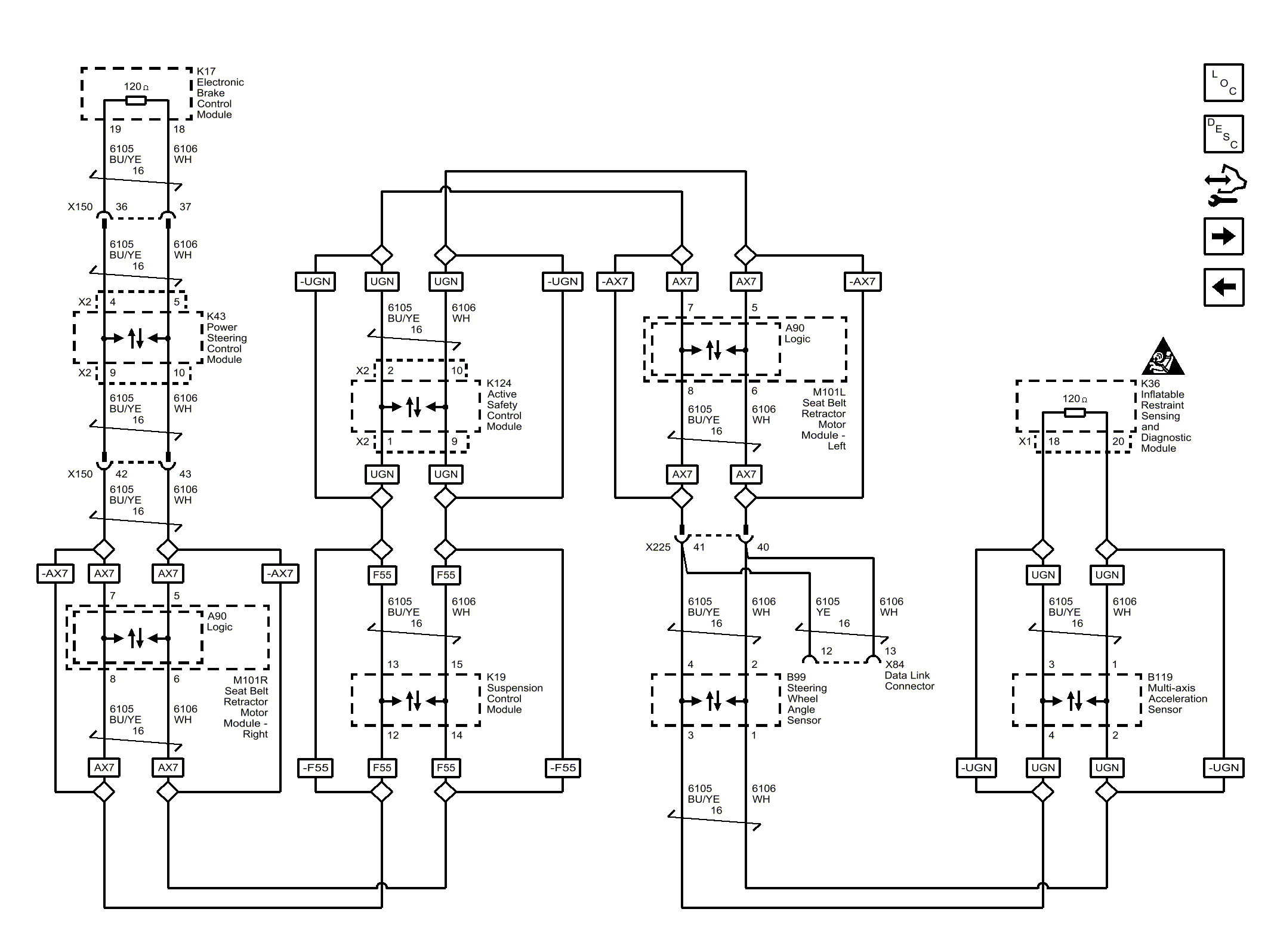

Fig 1: Chassis High Speed GMLAN
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
