Body Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY Body Control Module Replacement
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement
.
- Unclip and reposition the instrument panel fuse block.
|

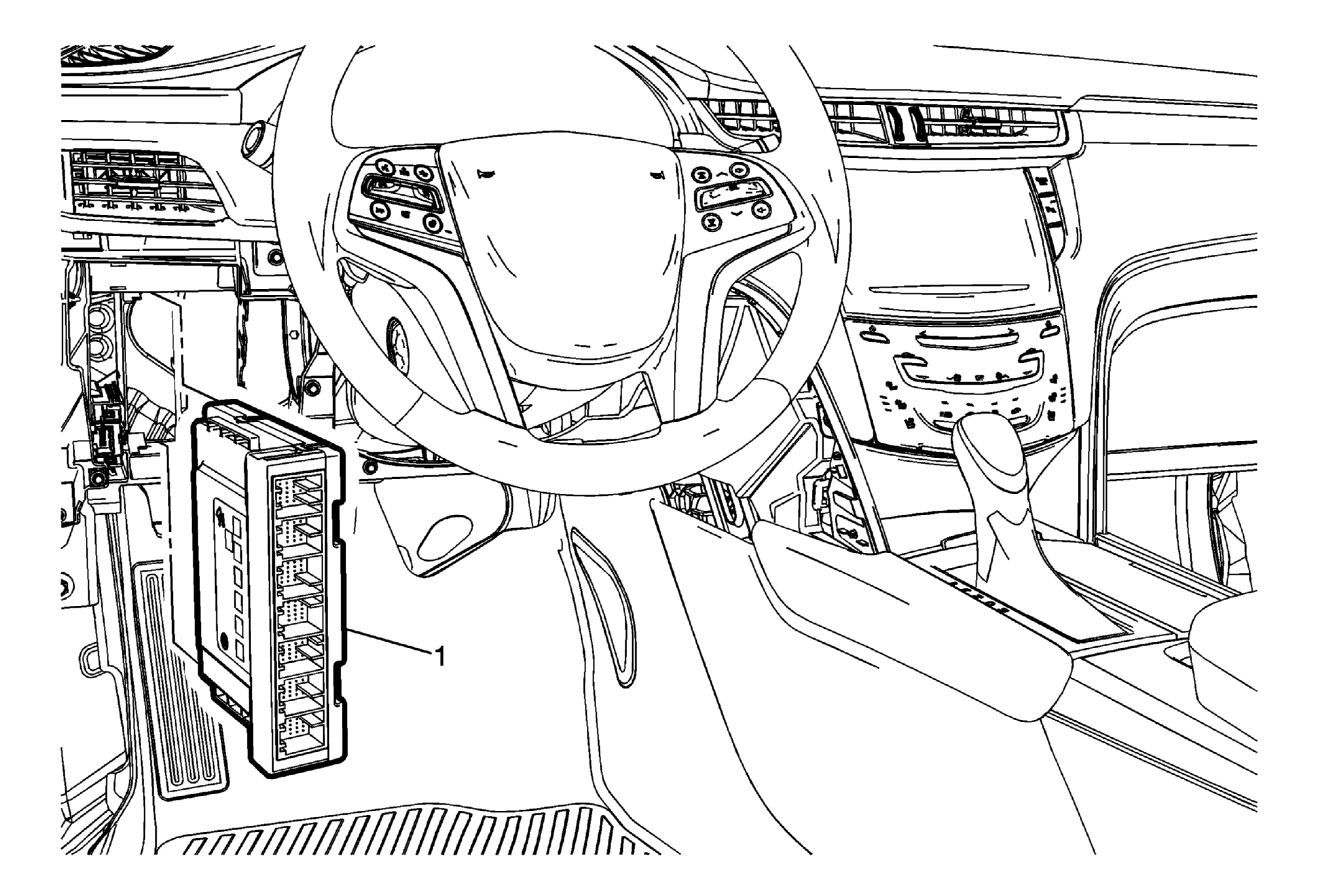

| 1 |
Body Control Module Procedure
- Disconnect the electrical connectors.
- Push tabs to release the body control module from the bracket.
- Reprogram the module if replaced. Refer to Control Module References
.
|
