Cadillac
>>
2014
>>
XTS Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communication System
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
Power, Ground and Data Communication
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Power, Ground and Data Communication

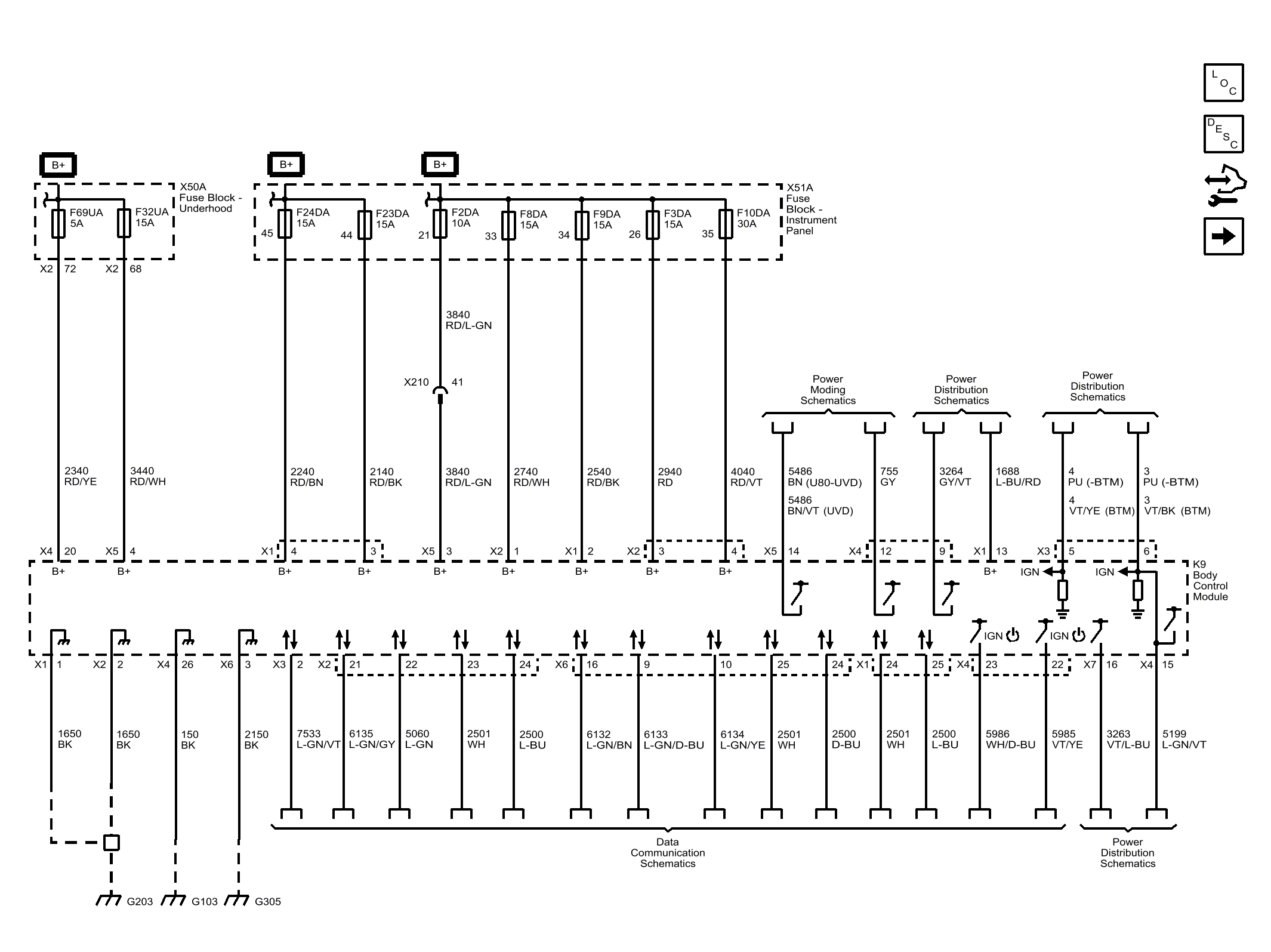

Fig 1: Power, Ground and Data Communication
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
