Rear Object Sensors and Control (UD5/UD7/UFQ)

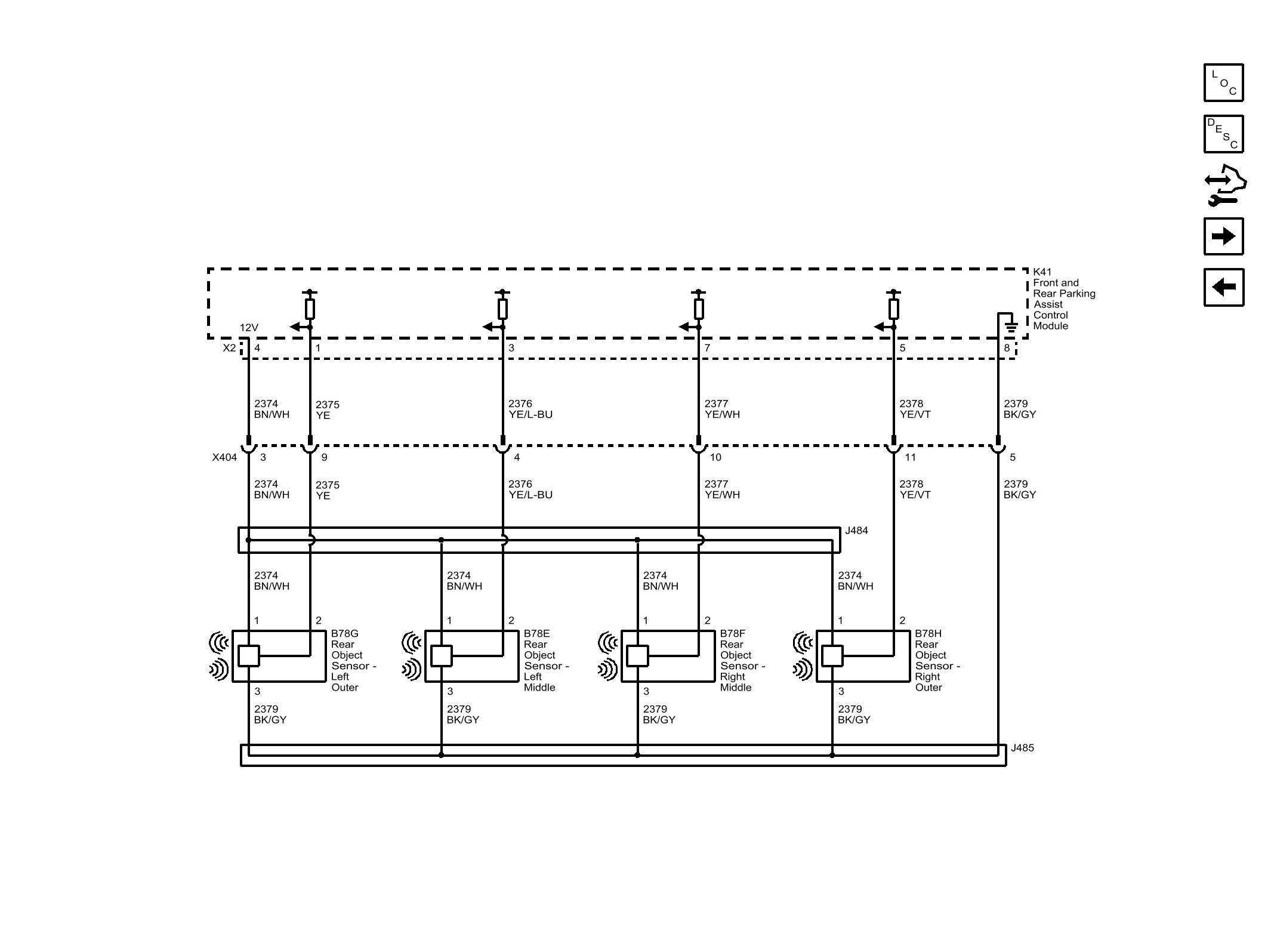

Fig 1: Rear Object Sensors and Control (UD5/UD7/UFQ)
GM3254392Courtesy of GENERAL MOTORS COMPANY
