Seat Haptic Motors (UGN/UVZ)

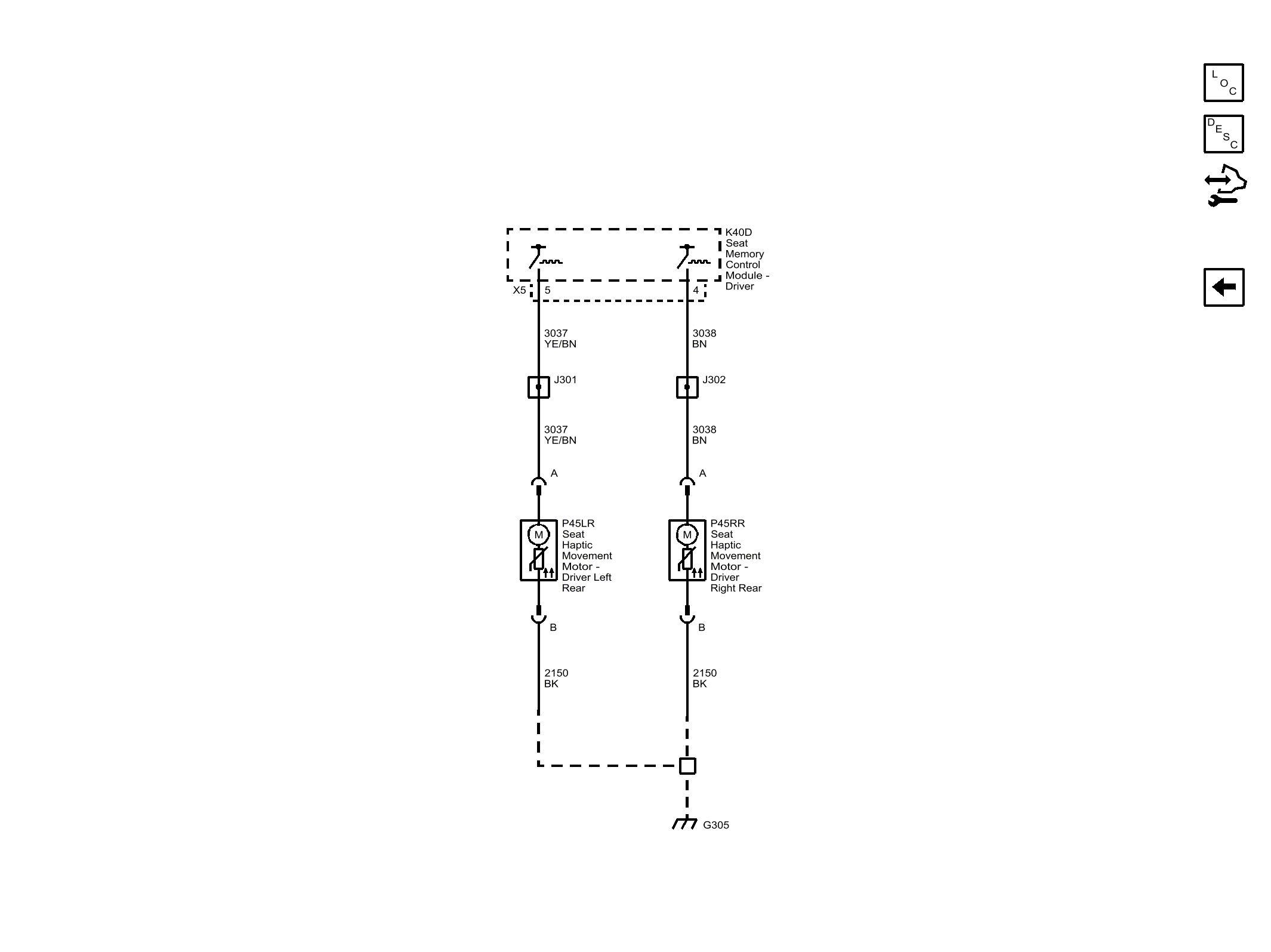

Fig 1: Seat Haptic Motors (UGN/UVZ)
GM3254404Courtesy of GENERAL MOTORS COMPANY
