Secondary and Configurable Controls

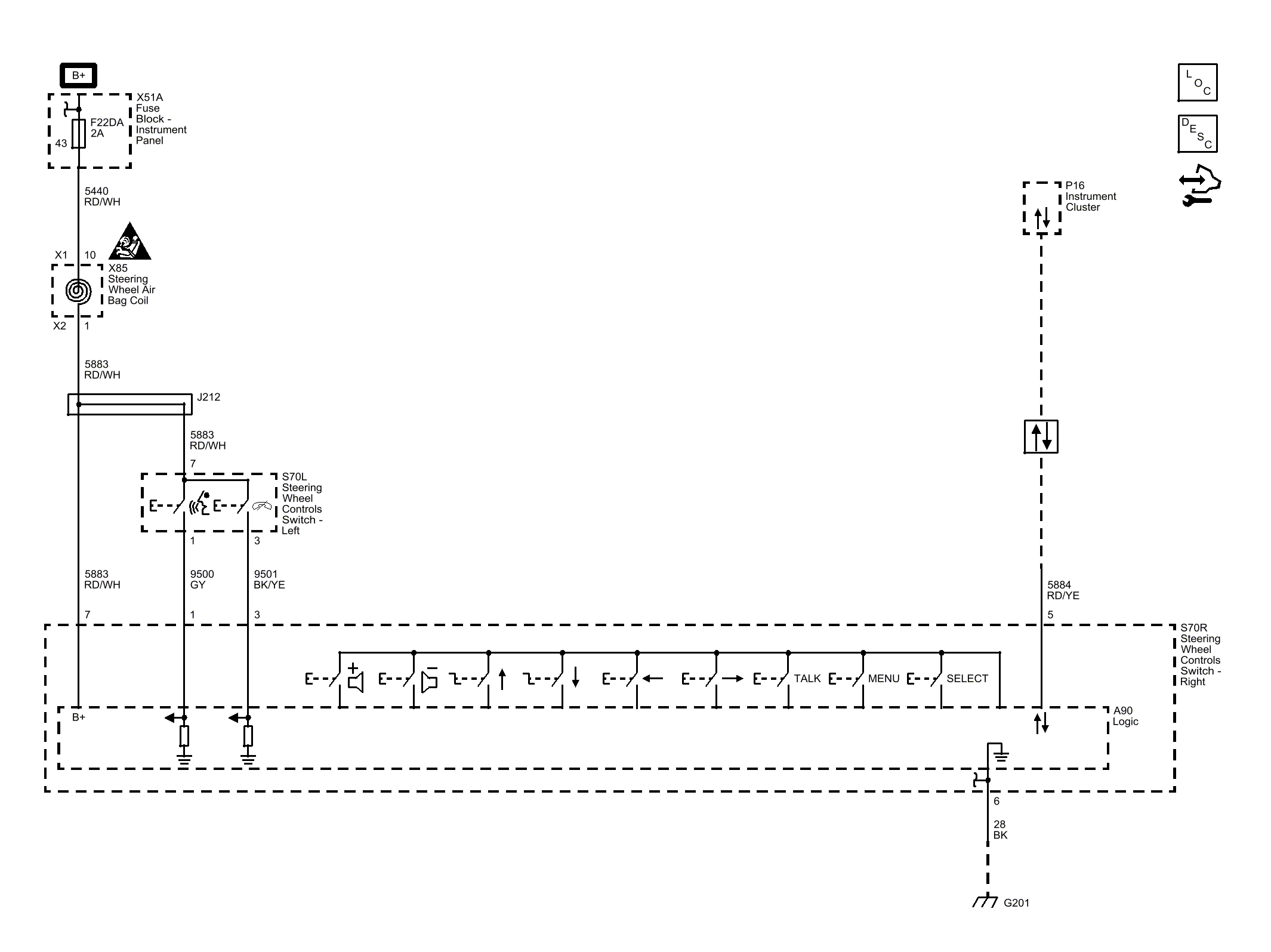

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic
GM3412703Courtesy of GENERAL MOTORS COMPANY
