Power, Ground and Serial Data (UGN/UVZ)

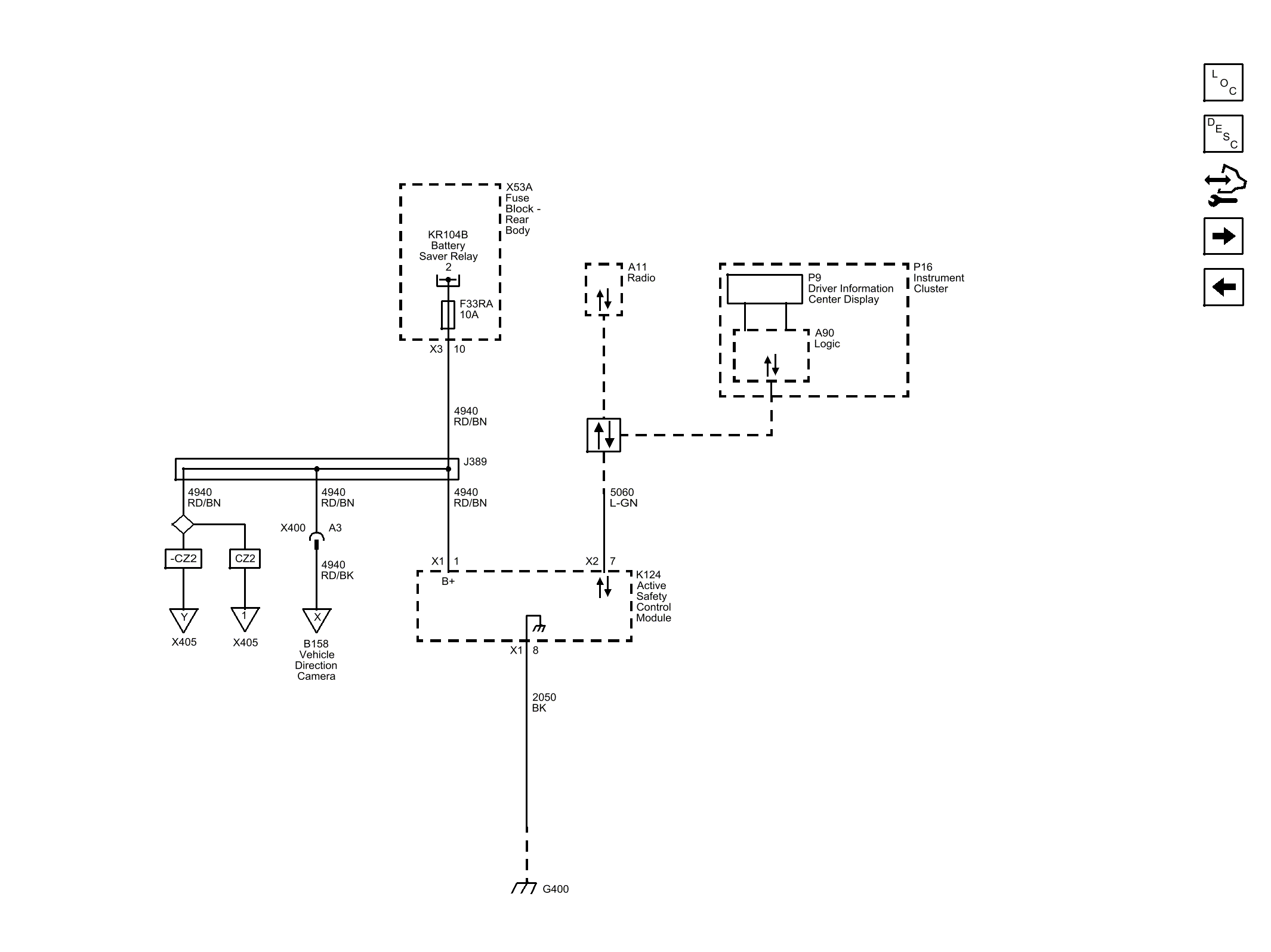

Fig 1: Power, Ground and Serial Data Wiring Schematic (UGN/UVZ)
GM3412881Courtesy of GENERAL MOTORS COMPANY
