Remote Control Door Lock Receiver Replacement
Courtesy of GENERAL MOTORS COMPANY Remote Control Door Lock Receiver Replacement
| Callout |
Component Name |
Preliminary Procedure
Remove the center reading lamp. Refer to Center Reading Lamp Replacement
. |
| 1 |

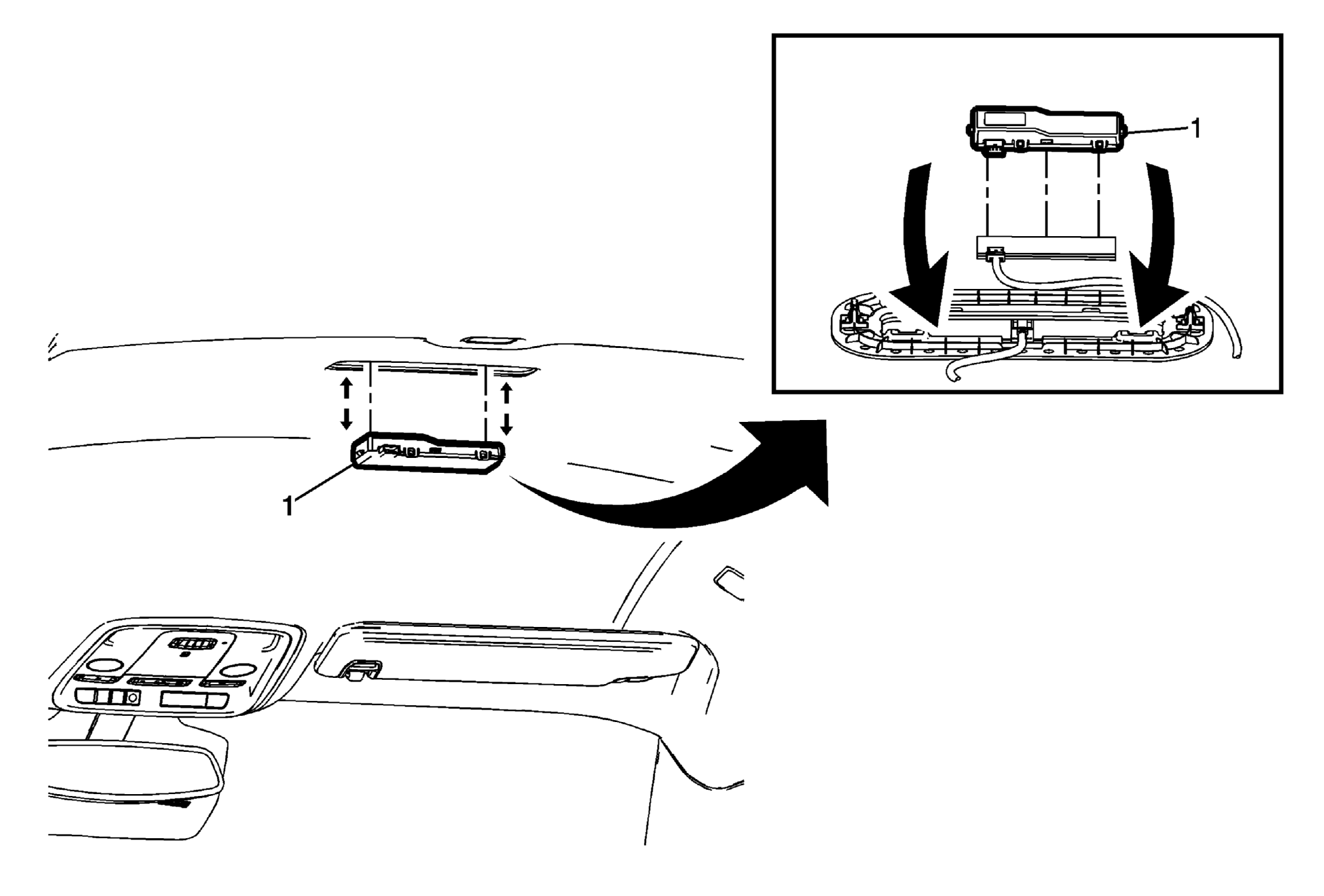

Remote Control Door Lock Receiver Procedure
- Disconnect the electrical connector.
- Gently detach the receiver secured by tape from the headlining trim panel and remove through the lamp opening in the headliner.
- For programming and set up, refer to Control Module References
.
|
