Pedestrian Protection System

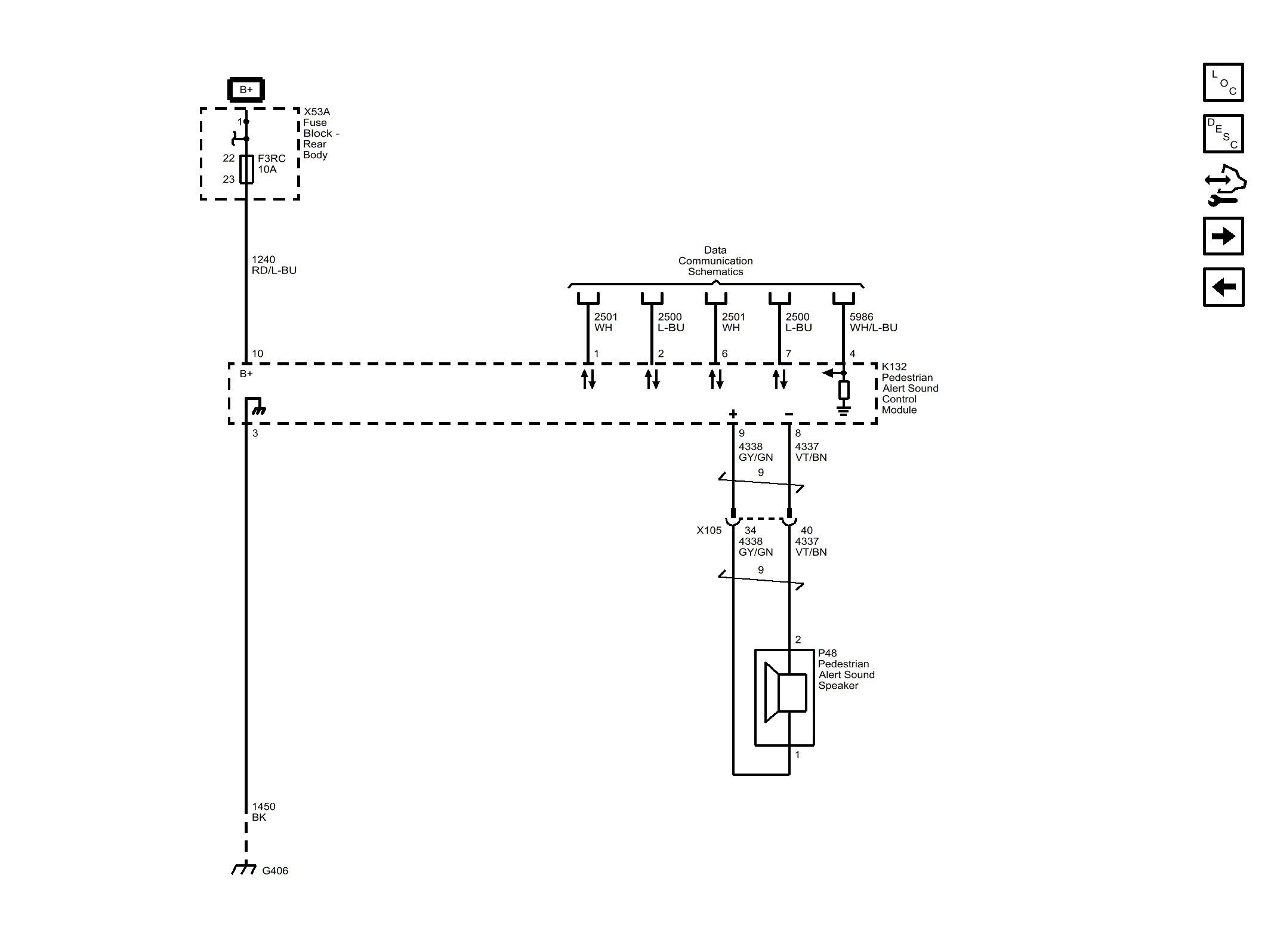

Fig 1: Pedestrian Protection
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
