Side Object Detection (UFT)
WARNING:
This page is about a different variant/trim than selected.

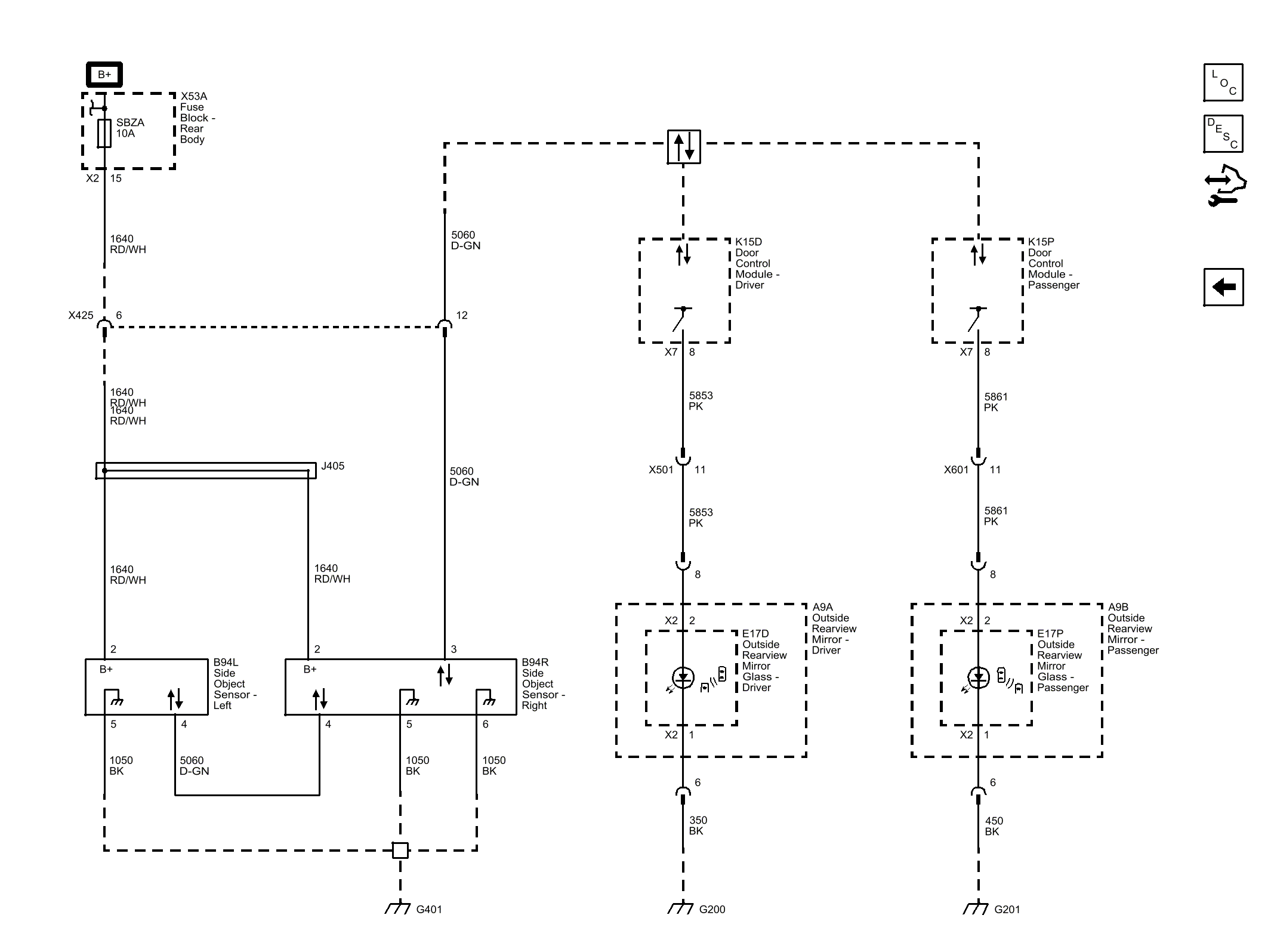

Fig 1: Side Object Detection (UFT)
Courtesy of GENERAL MOTORS COMPANY
