High Speed GMLAN

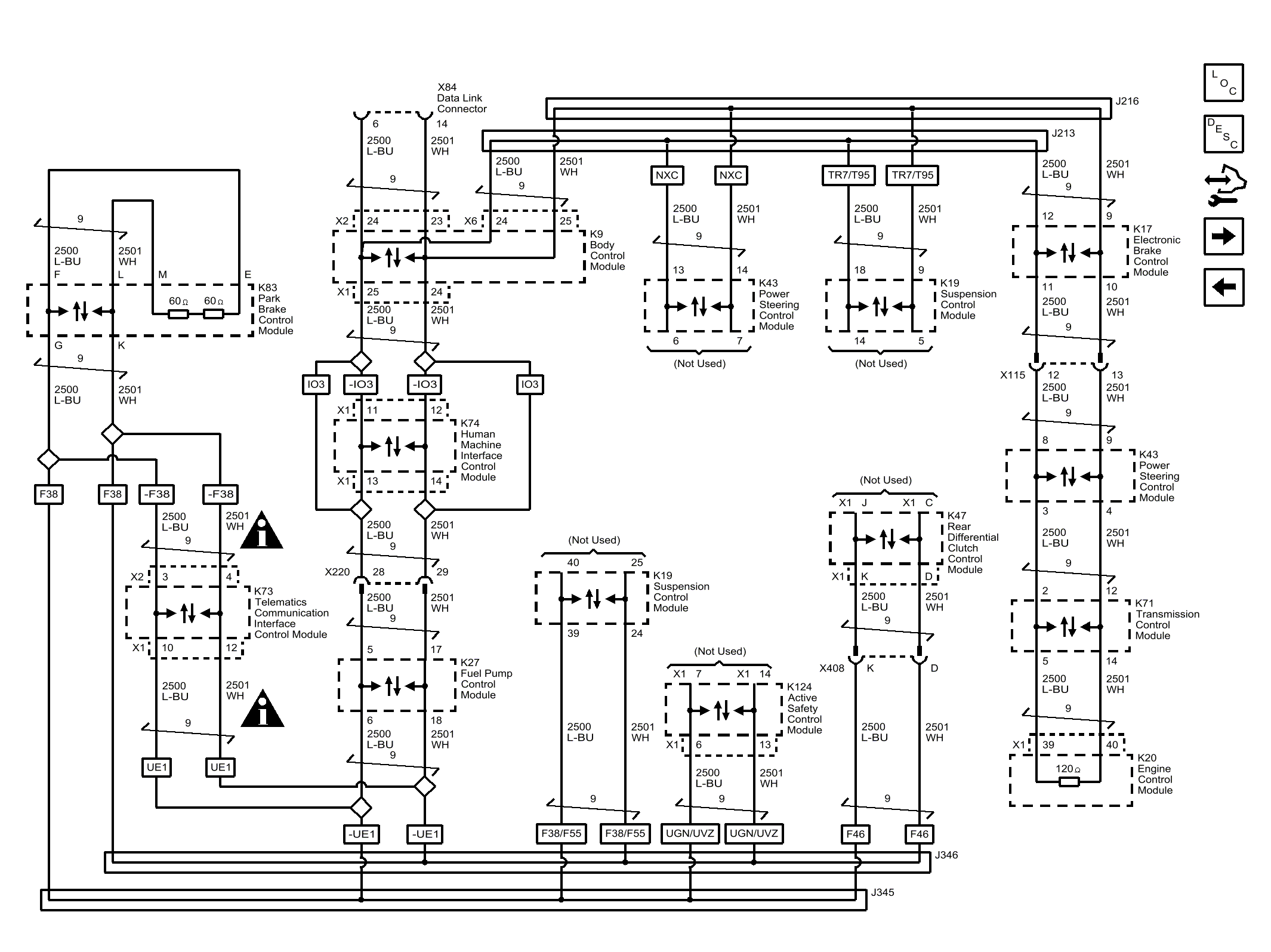

Fig 1: High Speed GMLAN Wiring Schematic
GM2762303Courtesy of GENERAL MOTORS COMPANY
