Communications Enable (1 of 2)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Communications Enable (1 of 2)

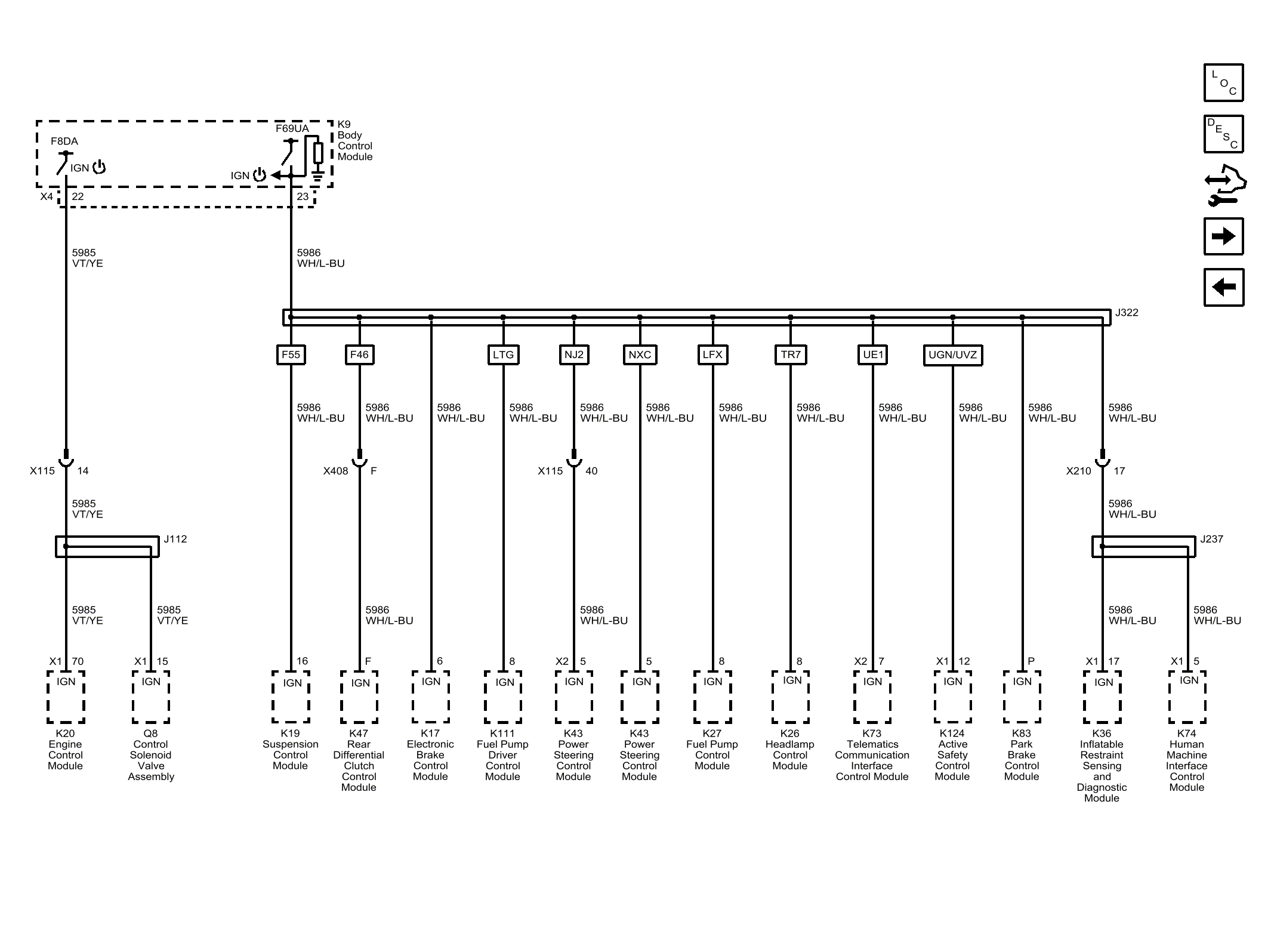

Fig 1: Communications Enable Wiring Schematic (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
