Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

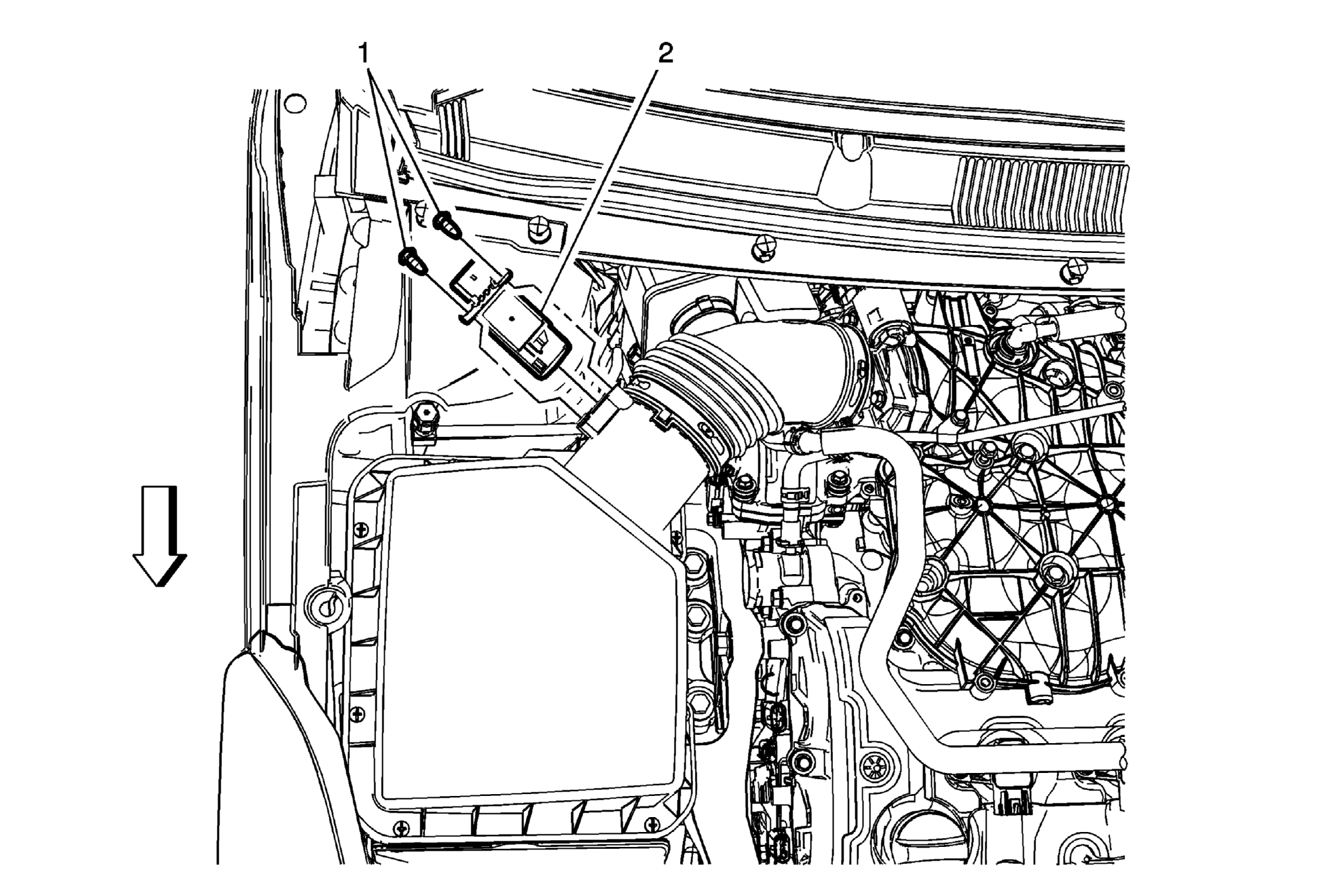

Fig 1: Mass Airflow Sensor & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Mass Air Flow Sensor Fasteners (Qty :2) CAUTION: Refer to Fastener Caution .
2	Mass Air Flow Sensor Procedure Disconnect the electrical connector.
