Air Cleaner Assembly Replacement

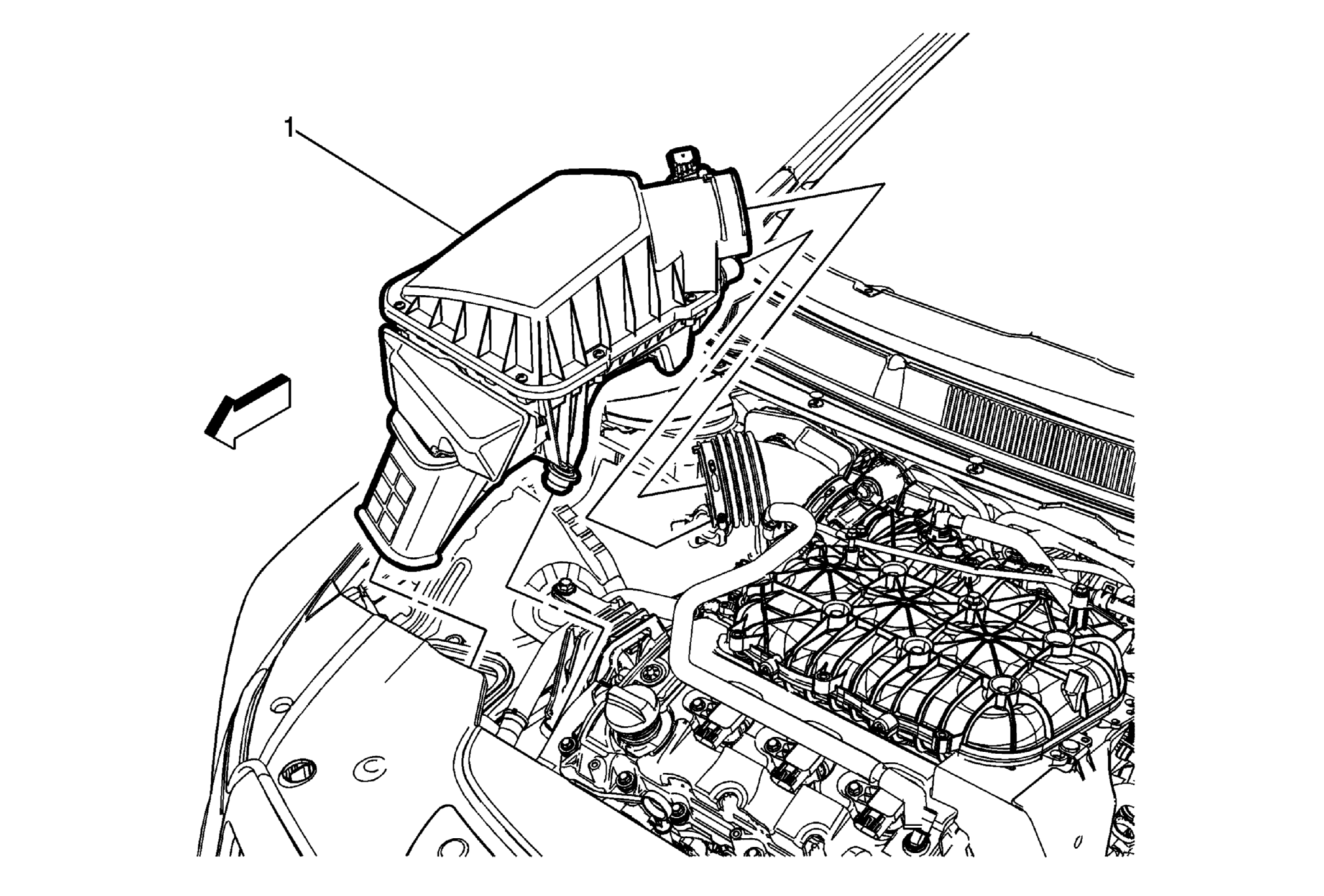

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Assembly Procedure Disconnect MAF sensor electrical connector. Remove the air cleaner housing from the retainers, while guiding the housing out of the inlet duct. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure
Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Assembly

Procedure

Disconnect MAF sensor electrical connector.
Remove the air cleaner housing from the retainers, while guiding the housing out of the inlet duct.
Transfer parts as necessary.
