Water Pump

NEW Water Pump Bolts

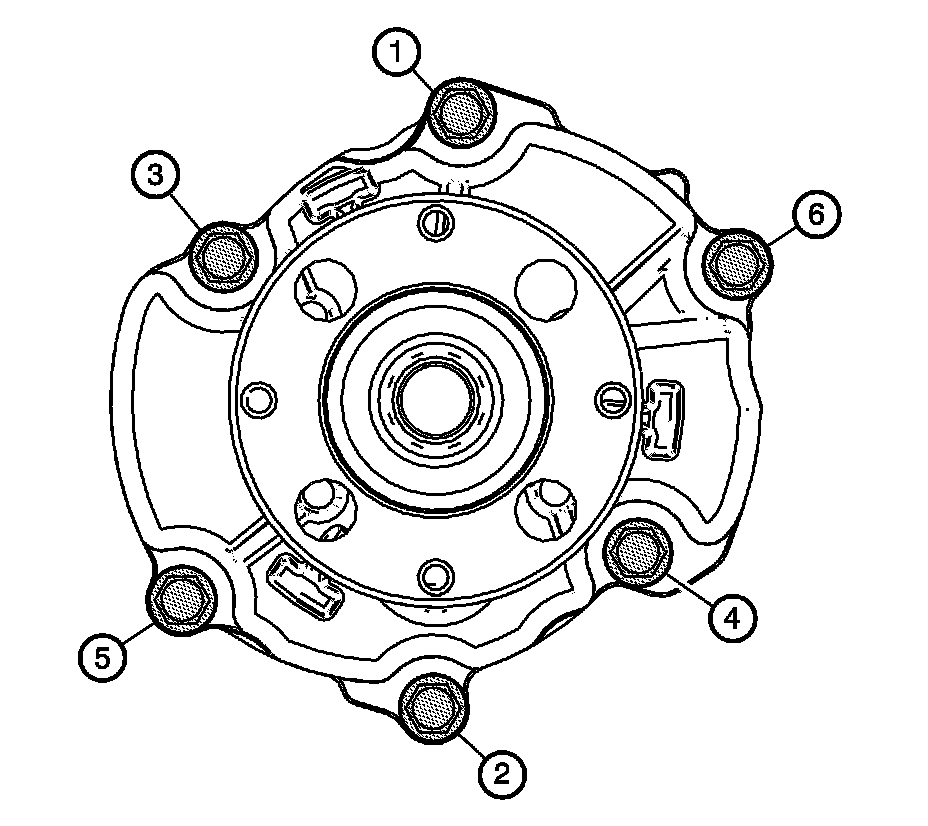

Tighten the bolts a first pass in the sequence shown to 10 Nm (89 lb in).
Tighten the bolts a second pass in the sequence shown to 10 Nm (89 lb in).
Tighten the bolts a final pass in the sequence shown an additional 45 degrees.
