Shift Lock Control Wiring Schematics
>>
MYA or MYD
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
MYA or MYD

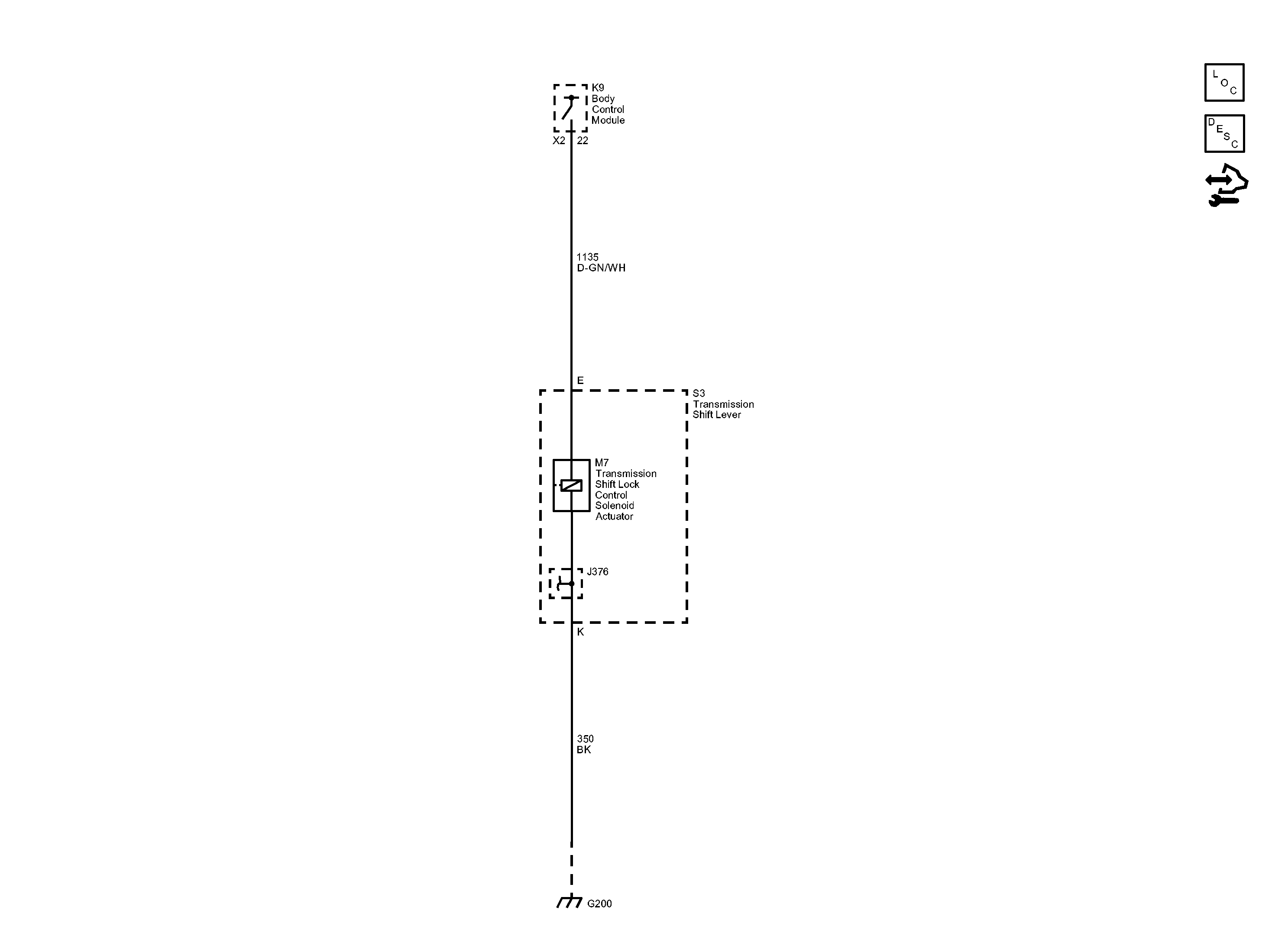

Fig 1: MYA or MYD Shift Lock Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
