Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System - Park Assist System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Sideview Camera (CV5)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Sideview Camera (CV5)

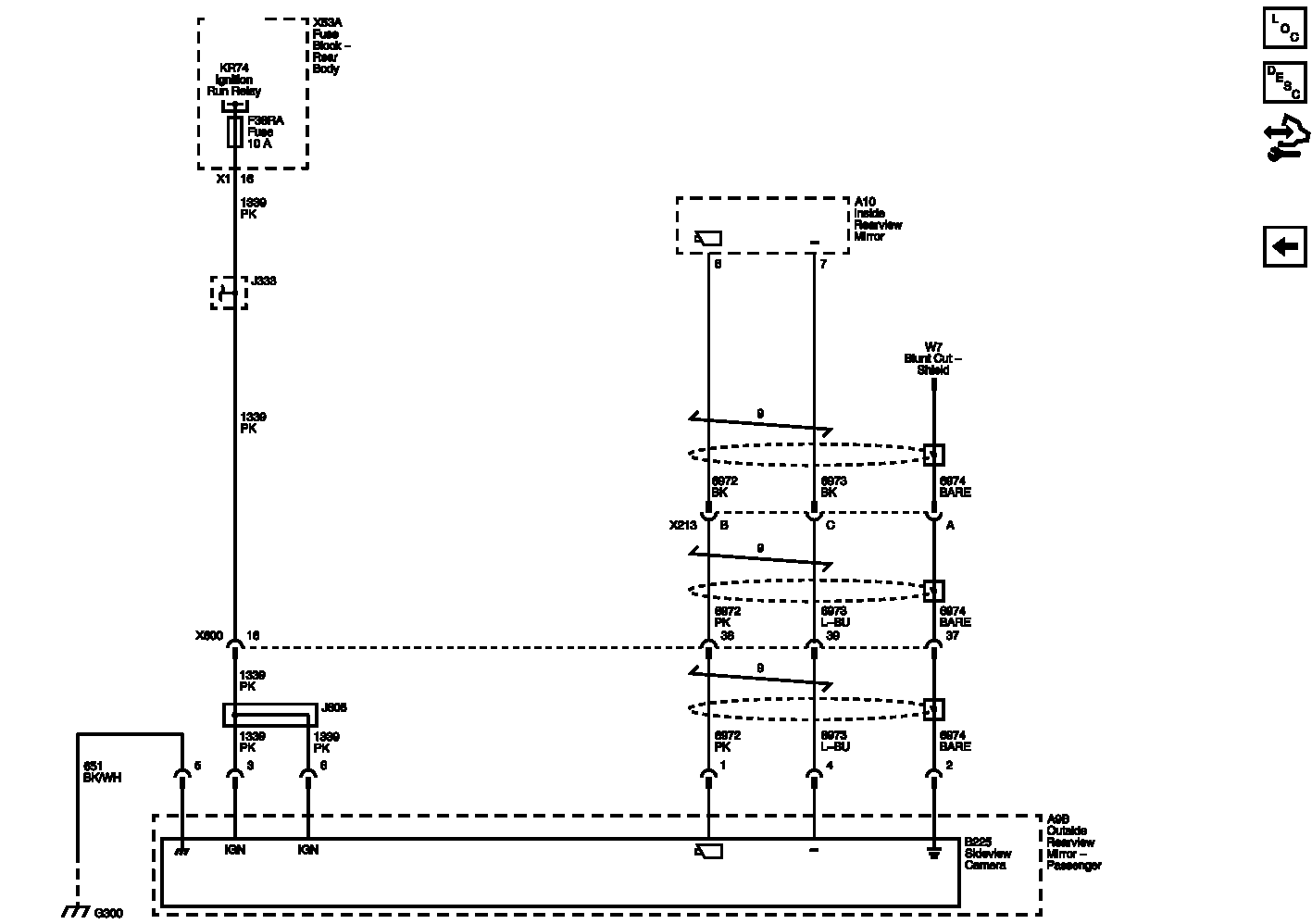

Fig 1: Sideview Camera (CV5) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
