Sunroof Control Module (C3U)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

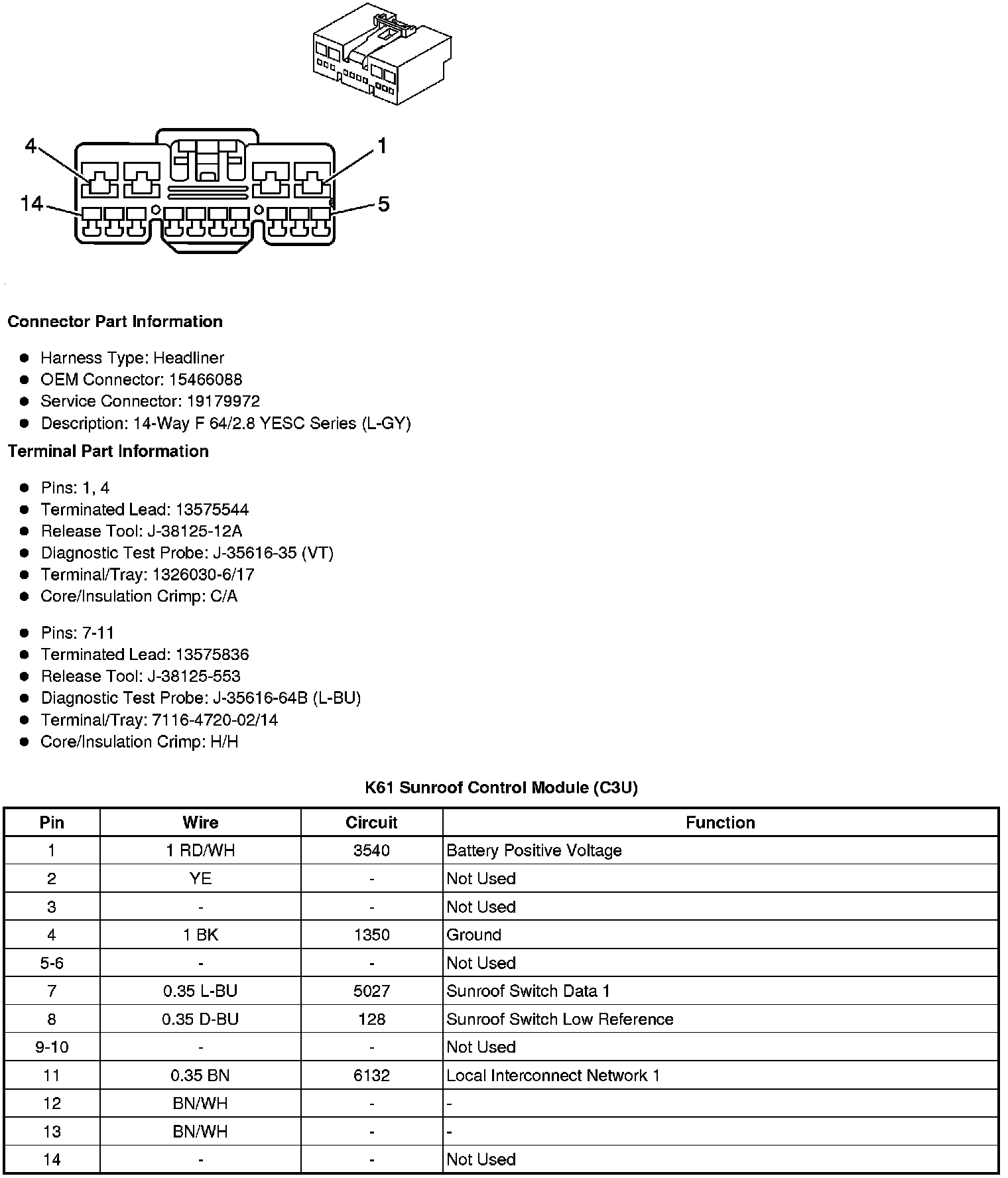

Sunroof Control Module (C3U)
Component Connector End Views
K61 Sunroof Control Module (C3U)
