Instrument Panel and Console Components




Instrument Panel/Center Console Component Views

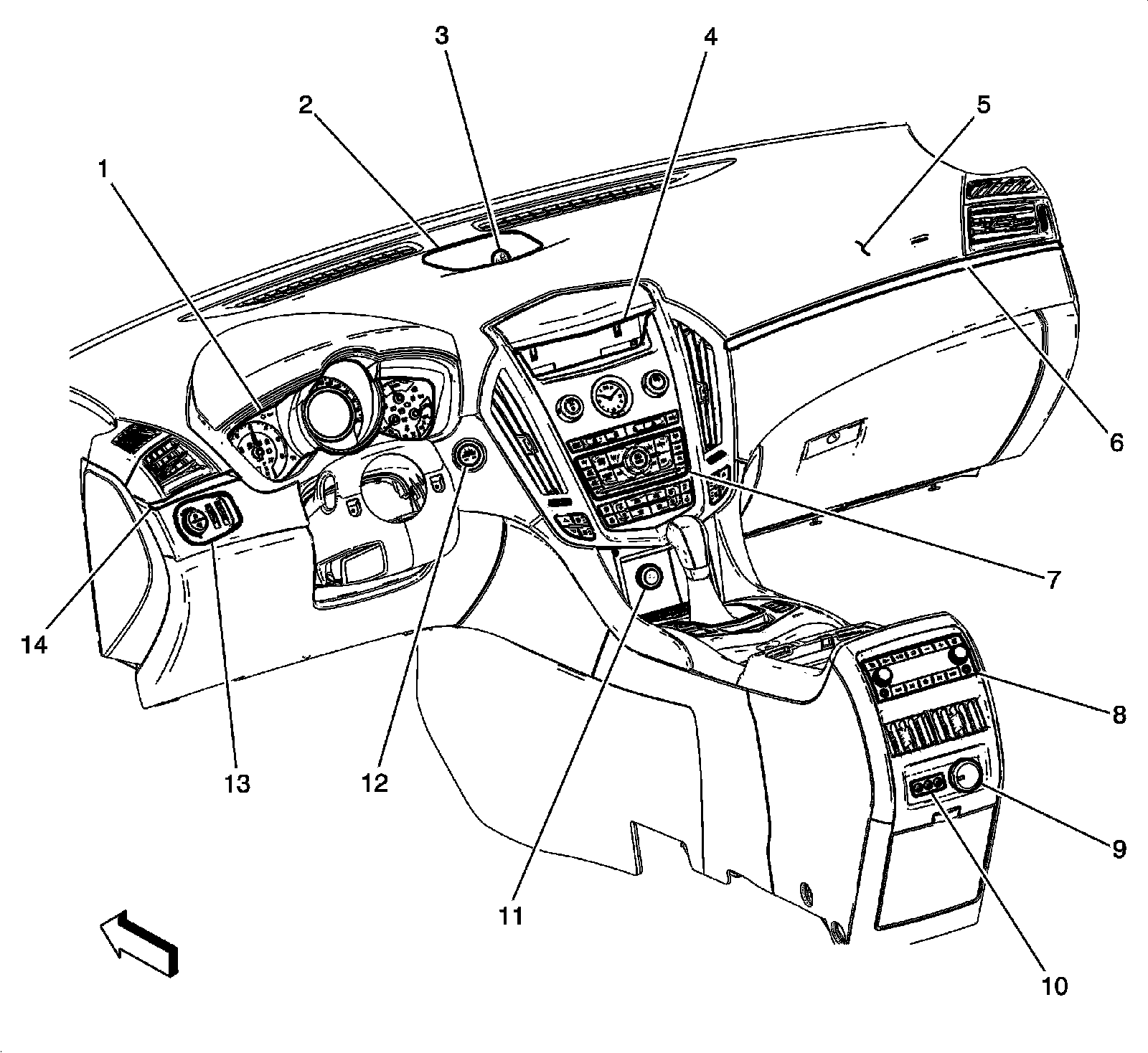

Instrument Panel and Console Components




1 - P16 Instrument Cluster
2 - P19B Speaker - Center Instrument Panel
3 - B10B Ambient Light/Sunload Sensor
4 - P17 Info Display Module
5 - F105 Passenger Instrument Panel Air Bag
6 - E1H Accent Lamp - Right Instrument Panel (TSQ)
7 - A20 Radio/HVAC Controls
8 - A13 Rear Audio Control Module (ULD )
9 - X80H Accessory Power Receptacle - Center Console
10 - X82 Audio/Video Input Adapter (UWG)
11 - X80G Accessory Power Receptacle - Instrument Panel
12 - S38 Ignition Mode Switch
13 - S30 Headlamp Switch
14 - E1G Accent Lamp - Left Instrument Panel (TSQ)
