Front Brake Shield Replacement

Front Brake Shield Replacement

Removal Procedure
Warning: Refer to Brake Dust Warning Brake Dust Warning.





1. Remove the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement Front Suspension.

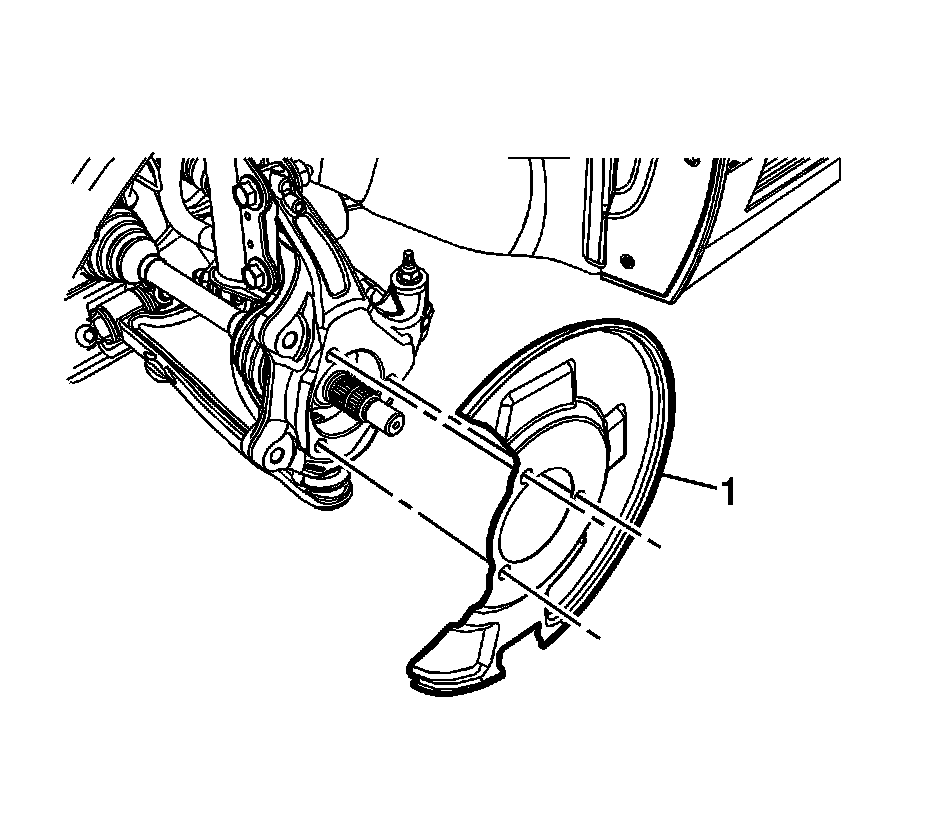

2. Remove the front brake shield (1).
3. Clean the front brake shield and steering knuckle mating surfaces of any corrosion.

Installation Procedure




1. Install the front brake shield (1).
2. Install the front wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement Front Suspension.
