Telematics Communication Interface Control Module X1 (UE1)

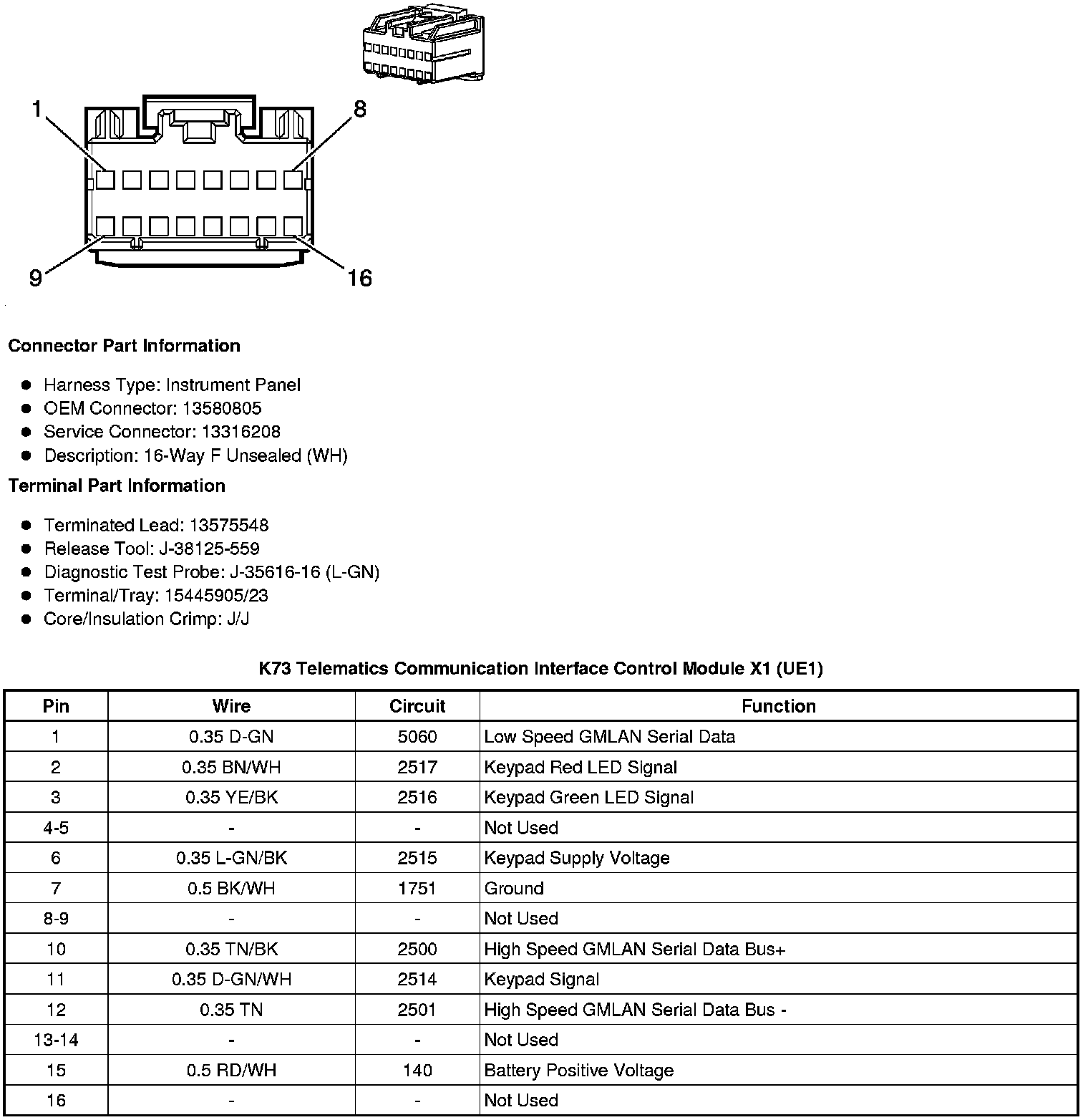

Component Connector End Views

K73 Telematics Communication Interface Control Module X1 (UE1)
