Sunroof / Moonroof Module: Locations




Passenger Compartment/Roof Component Views

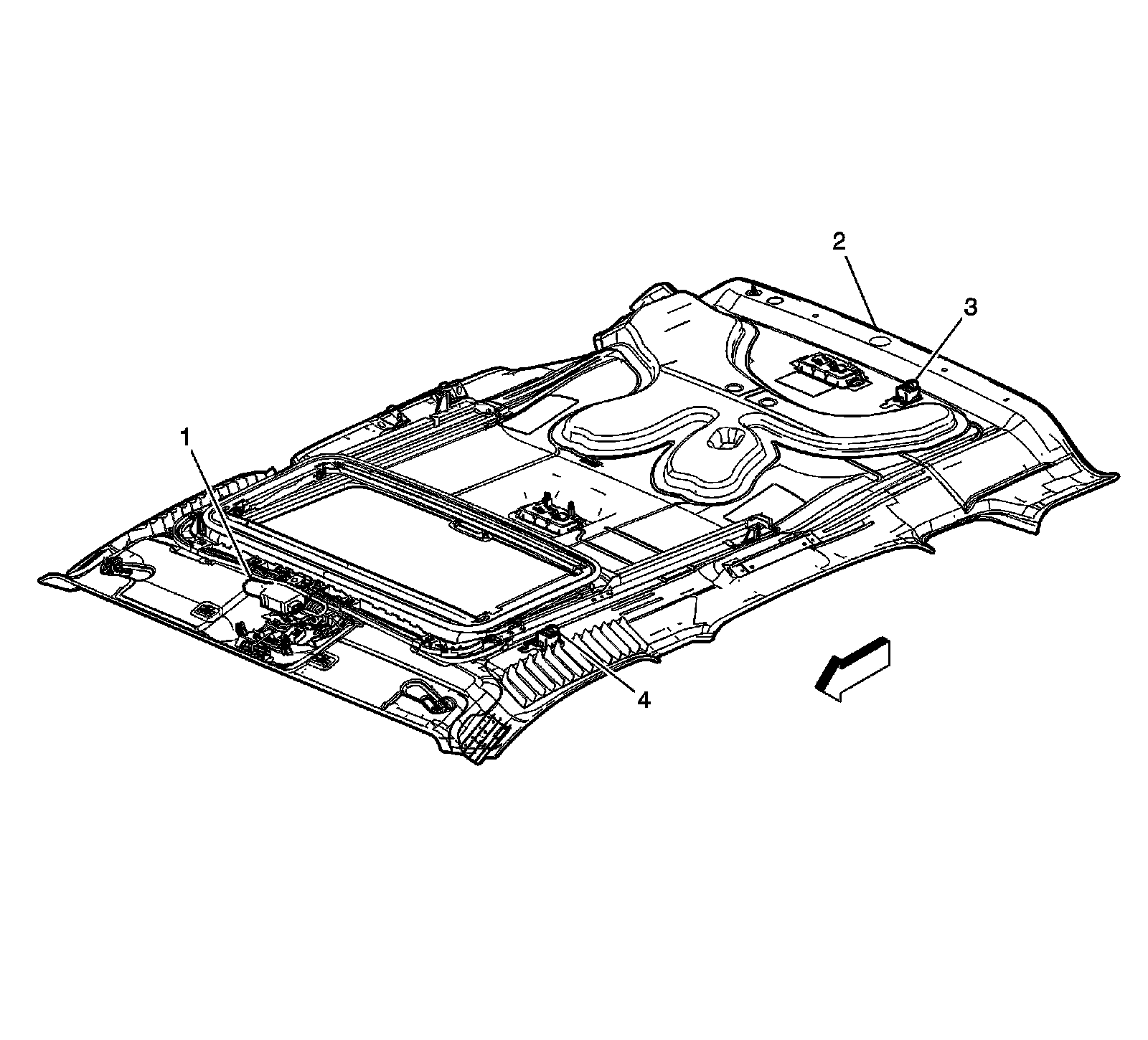

Roof Components (CF5)




1 - Sunroof Control Module (CF5)
2 - Electronic Compass Module (YE9)
3 - Inside Air Temperature Sensor - Auxiliary (CJ2 with C69)
4 - Inside Air Temperature Sensor (CJ2)
